Reinforced parting blade – Contra G4041...C G4041-26L-2T17DX18C

Reinforced parting blade – Contra G4041...C G4041-26L-2T17DX18C

€

173.00

EX VAT

€

212.79

INC VAT

Walter

Reinforced parting blade – Contra G4041...C G4041-26L-2T17DX18C

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

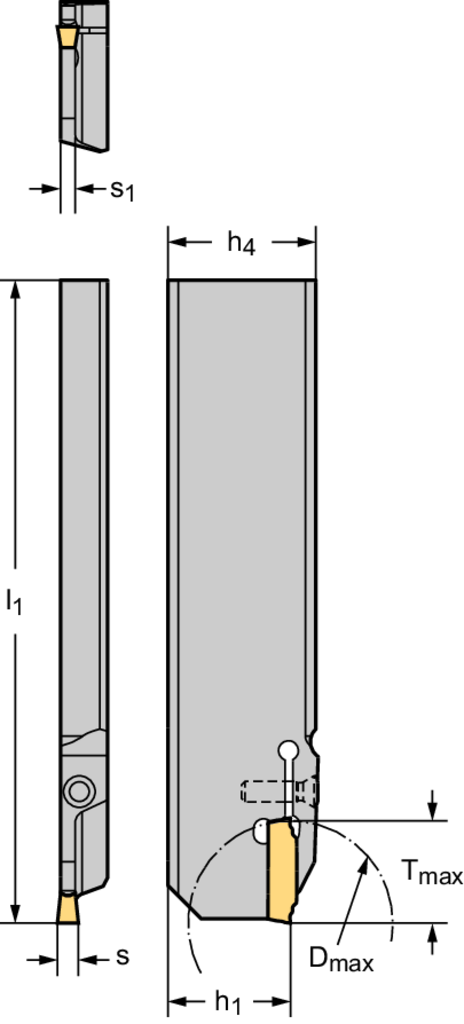

Tool designation (Designation) G4041-26L-2T17DX18C

Insert width (s) 2 mm

Maximum cutting depth (T max) 17 mm

Maximum workpiece diameter (D max) 35 mm

Shank height (h 4) 26 mm

Overall length (l 1) 110 mm

Center height (h 1) 21,3 mm

Body width (s 1) 1,6 mm

Insert Shape G4

DESCRIPTION & FEATURES

Reinforced parting blade – Contra G4041...C • metric • Left • DX18

Article number (J21):

G4041-26L-2T17DX18C

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-175

Tool style code (BLD):

Cutting width (A18):

2 mm

Functional length (A3):

110 mm

Functional height (A4):

0 mm

Cutting depth maximum (A8):

17 mm

Overall length (B5):

110 mm

Connection code type machine side (C11):

PMW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

026L

Shank height (C4):

26 mm

Shank width (C8):

8 mm

Weight of item (D7):

0,141 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Left

Clamping type code (F5):

Body material code (H4):

Master insert identification (J42):

DX18-2

Data chip provision (J7):
