Reinforced parting blade G1041.32R-3T32GX24

Reinforced parting blade G1041.32R-3T32GX24

€

187.00

EX VAT

€

230.01

INC VAT

Walter

Reinforced parting blade G1041.32R-3T32GX24

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

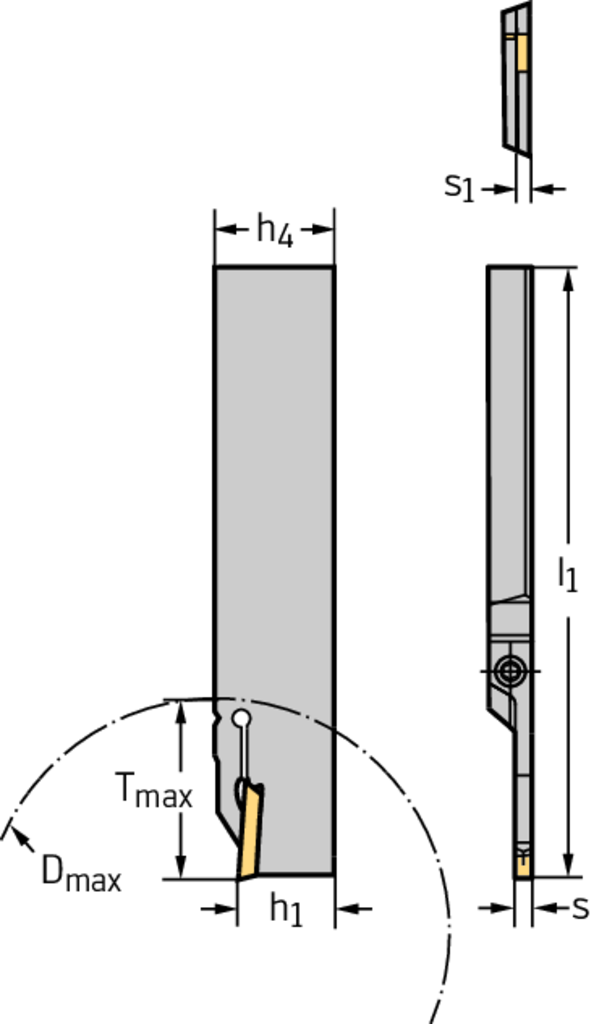

PRODUCT ATTRIBUTES

Tool designation (Designation) G1041.32R-3T32GX24

Insert width (s) 3 mm

Maximum cutting depth (T max) 32 mm

Maximum workpiece diameter (D max) 65 mm

Shank height (h 4) 32 mm

Overall length (l 1) 110 mm

Center height (h 1) 24,6 mm

Body width (s 1) 2,2 mm

Insert Shape G1

DESCRIPTION & FEATURES

Reinforced parting blade G1041 • metric • Right • GX24

Article number (J21):

G1041.32R-3T32GX24

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-175

Tool style code (BLD):

Cutting width (A18):

3 mm

Functional length (A3):

110 mm

Functional height (A4):

0 mm

Cutting depth maximum (A8):

32 mm

Overall length (B5):

110 mm

Connection code type machine side (C11):

PMW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

032R

Shank height (C4):

32 mm

Shank width (C8):

8 mm

Weight of item (D7):

0,17 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Right

Clamping type code (F5):

Body material code (H4):

Data chip provision (J7):
