Replaceable head – Internal thread T1820-Q...-P T1820-Q50L-16I-P

Replaceable head – Internal thread T1820-Q...-P T1820-Q50L-16I-P

€

510.00

EX VAT

€

627.30

INC VAT

Walter

Replaceable head – Internal thread T1820-Q...-P T1820-Q50L-16I-P

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

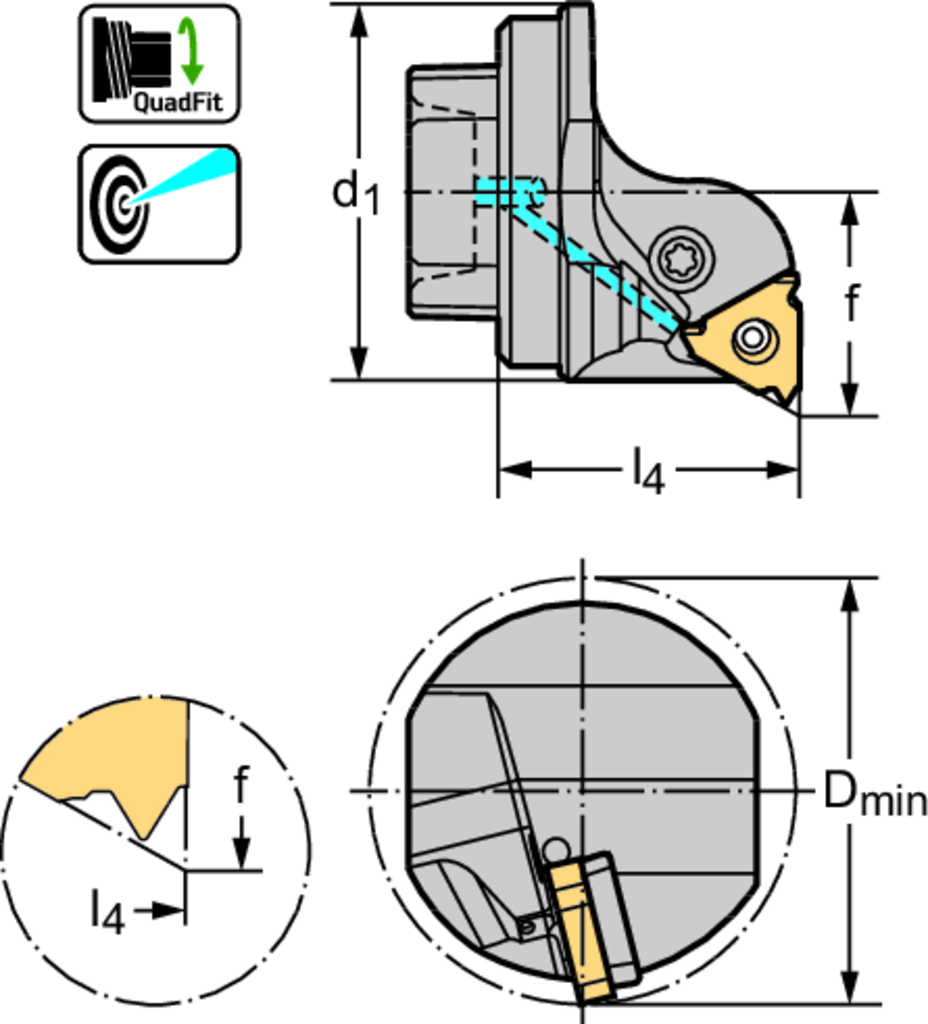

Tool designation (Designation) T1820-Q50L-16I-P

insert interface code symbol 05 (insert interface code symbol 05) 16

Connection size code (d 1) Q50

Minimum hole diameter (D min) 54 mm

Functional width (f) 28,8 mm

Functional length (l 4) 32 mm

Beta (β) 1 Deg

Insert Shape T1

DESCRIPTION & FEATURES

Replaceable head – Internal thread T1820-Q...-P • QuadFit • Precision cooling • metric • Left • 50mm

Article number (J21):

T1820-Q50L-16I-P

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Functional width (A2):

28,8 mm

Functional length (A3):

32 mm

Functional height (A4):

0 mm

Protruding length (B3):

43,5 mm

Overall length (B5):

43,5 mm

Connection code type machine side (C11):

SGL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0500

Weight of item (D7):

0,35 kg

Tool cutting edge angle (E1):

90 °

Cutting direction (F1):

Left

Tool holder shape code (F2):

Drop head design (F3):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

NTS-I-16

Data chip provision (J7):

Insert Type:

50mm
