Replaceable head – screw clamping Q...-SCLC Q50-SCLCR-32032-12Replaceable head – screw clamping Q...-SCLC Q50-SCLCR-32032-12
Replaceable head – screw clamping Q...-SCLC Q50-SCLCR-32032-12 Replaceable head – screw clamping Q...-SCLC Q50-SCLCR-32032-12

Replaceable head – screw clamping Q...-SCLC Q50-SCLCR-32032-12

€
425.00
EX VAT
€
522.75
INC VAT
Walter
Replaceable head – screw clamping Q...-SCLC Q50-SCLCR-32032-12
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

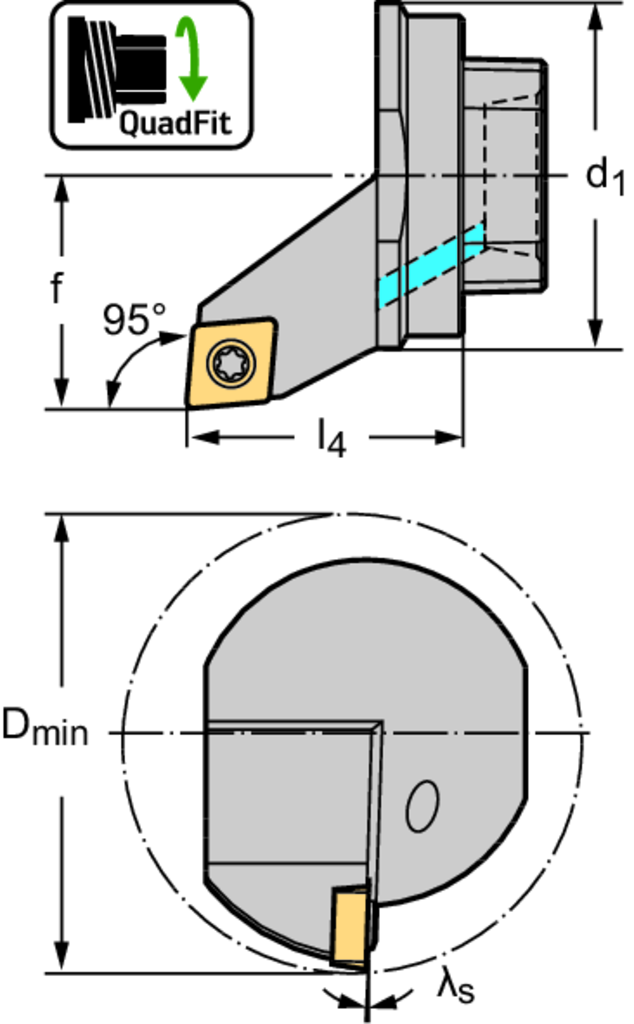

Tool designation (Designation) Q50-SCLCR-32032-12
Connection size code (d 1) Q50
Minimum hole diameter (D min) 63 mm
Functional width (f) 32 mm
Functional length (l 4) 32 mm
Orthogonal rake angle (γ) 0 Deg
Inclination angle (λ s) -9 Deg
Insert Shape Q.
DESCRIPTION & FEATURES
Replaceable head – screw clamping Q...-SCLC • Walter Turn • metric • QuadFit • Right • rhombic insert • CC .. 1204 ..
Article number (J21):
Q50-SCLCR-32032-12
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
10
Cutting edge length (A1):
12,9 mm
Functional width (A2):
32 mm
Functional length (A3):
32 mm
Functional height (A4):
0 mm
Minimum bore diameter (A6):
63 mm
Protruding length (B3):
43,5 mm
Overall length (B5):
43,5 mm
Connection code type machine side (C11):
SGL
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0500
Weight of item (D7):
0,258 kg
Tool cutting edge angle (E1):
95 °
Tool cutting edge angle type code (E2):
E
Insert included angle (E3):
80 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
-9 °
Cutting direction (F1):
Right
Clamping type code (F5):
S
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Master insert identification (J42):
CCMT 12 04 08
Data chip provision (J7):
0
Insert Type:
CC .. 1204 ..
