Replaceable head – screw clamping Q...-SDXC Q40-SDXCL-27025-11

Replaceable head – screw clamping Q...-SDXC Q40-SDXCL-27025-11

€

405.00

EX VAT

€

498.15

INC VAT

Walter

Replaceable head – screw clamping Q...-SDXC Q40-SDXCL-27025-11

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

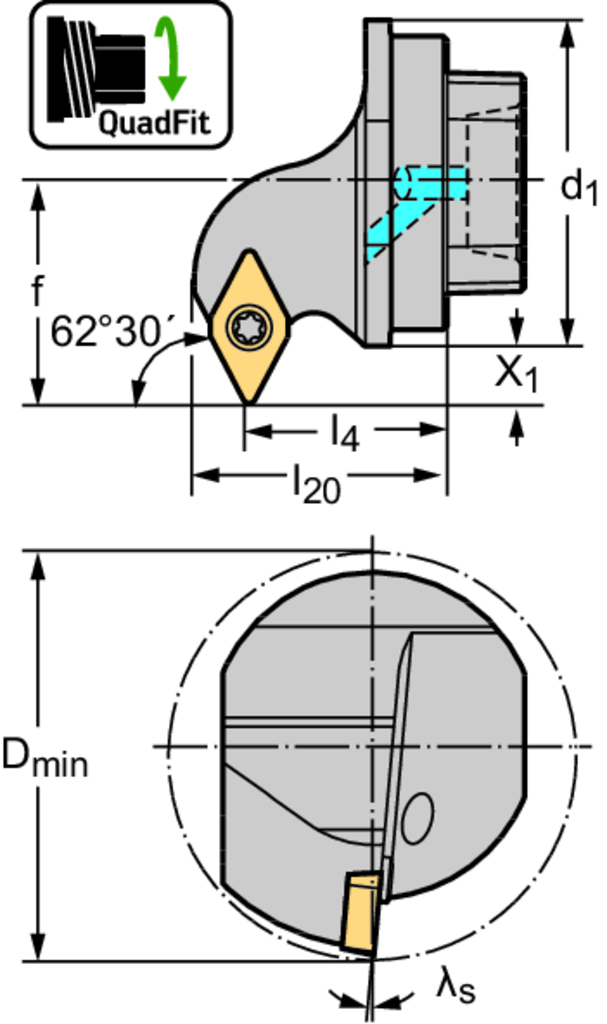

PRODUCT ATTRIBUTES

Tool designation (Designation) Q40-SDXCL-27025-11

Connection size code (d 1) Q40

Minimum hole diameter (D min) 50 mm

Functional width (f) 26,9 mm

functional length (l 4) 25 mm

Overall length (l 20) 40,5 mm

X (X 1) 6,9 mm

Orthogonal rake angle (γ) 0 Deg

Inclination angle (λ s) -5 Deg

Insert Shape Q.

DESCRIPTION & FEATURES

Replaceable head – screw clamping Q...-SDXC • Walter Turn • metric • QuadFit • Left • rhombic insert • DC .. 11T3 ..

Article number (J21):

Q40-SDXCL-27025-11

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

11,6 mm

Functional width (A2):

26,9 mm

Functional length (A3):

25 mm

Functional height (A4):

0 mm

Minimum bore diameter (A6):

50 mm

Overall length (B5):

40,5 mm

Connection code type machine side (C11):

SGL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

40 mm

Weight of item (D7):

0,167 kg

Tool cutting edge angle (E1):

62,5 °

Tool cutting edge angle type code (E2):

Insert included angle (E3):

55 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

-5 °

Cutting direction (F1):

Left

Tool holder shape code (F2):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

DCMT 11 T3 08

Data chip provision (J7):

Protruding length (LPR):

40,5 mm

Insert Type:

DC .. 11T3 ..
