Round insert milling cutters M5468-042-TC16-05-06

Round insert milling cutters M5468-042-TC16-05-06

€

384.00

EX VAT

€

472.32

INC VAT

Walter

Round insert milling cutters M5468-042-TC16-05-06

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

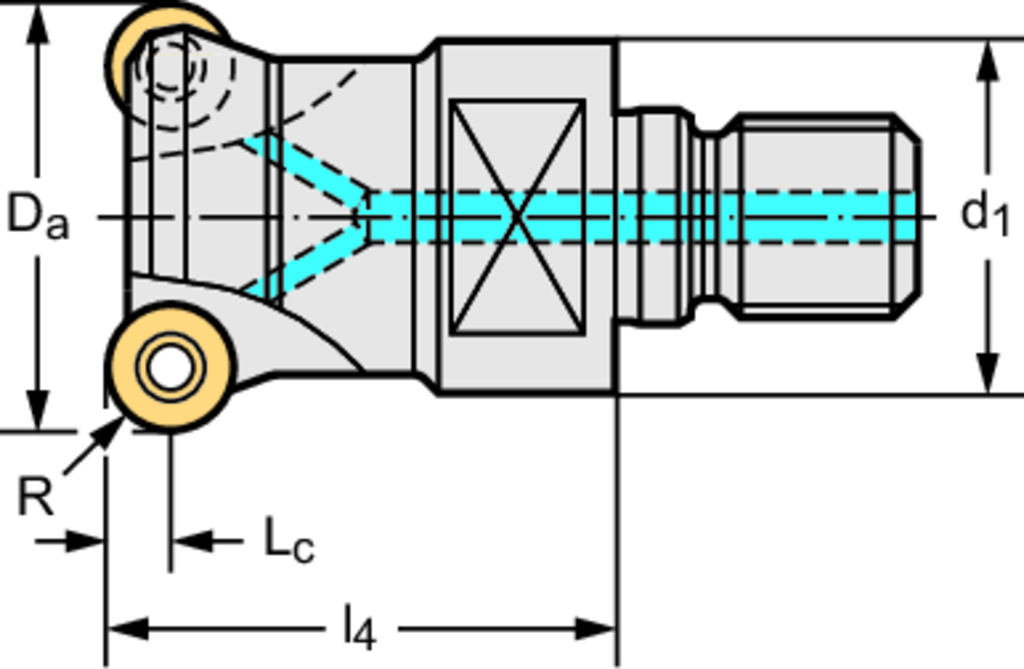

PRODUCT ATTRIBUTES

Tool designation (Designation) M5468-042-TC16-05-06

Corner radius (r) 6 mm

Maximum cutting diameter (D a) 42 mm

Shank diameter (d 1) M16 mm

Functional length (l 4) 40 mm

Cutting edge length (L c) 6 mm

Number of teeth (Z) 5

weight of item 0,19 kg

Number of indexable inserts (No. of indexable inserts) 5

Insert Shape M5

DESCRIPTION & FEATURES

Round insert milling cutters M5468 • Cylindrical modular • metric • RO .. 1204 .. • Dc=30mm • Z=5

Article number (J21):

M5468-042-TC16-05-06

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

30 mm

Cutting diameter maximum (A2):

42 mm

Body diameter (A3):

28 mm

Depth of cut maximum (B2):

6 mm

Protruding length (B3):

40 mm

Usable length (B4):

40 mm

Overall length (B5):

64 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0160

Connection diameter machine side (C3):

28 mm

Shank length (C4):

24 mm

Mill tool type ISO (D11):

Rotational speed maximum (D6):

27500 1/min

Weight of item (D7):

0,19 kg

Adjustment property (D9):

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

13,4 °

Plunge depth maximum (E5):

1,18 mm

Cutting direction (F1):

Right

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Master insert identification, position A (J42):

ROHX1204M08-A57

Data chip provision (J7):
