Round insert milling cutters M5468-080-B27-07-08

Round insert milling cutters M5468-080-B27-07-08

€

679.00

EX VAT

€

835.17

INC VAT

Walter

Round insert milling cutters M5468-080-B27-07-08

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

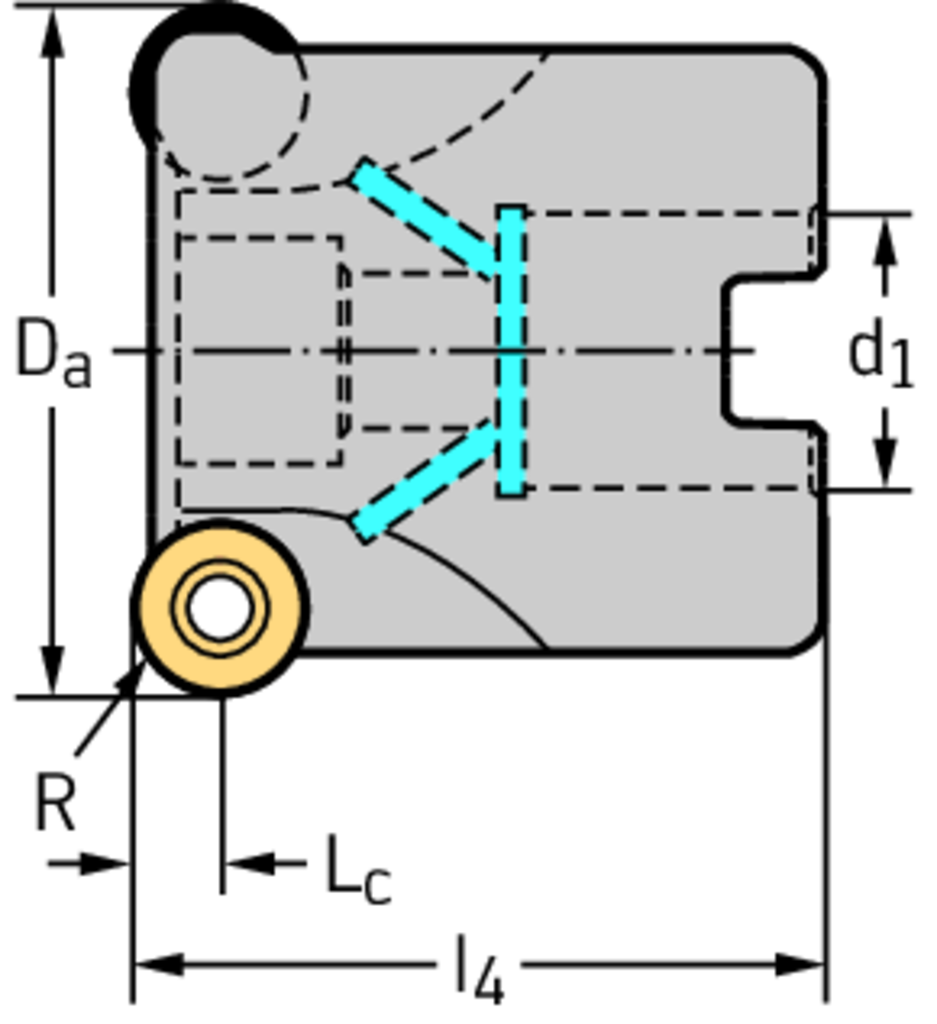

Tool designation (Designation) M5468-080-B27-07-08

Corner radius (r) 8 mm

Maximum cutting diameter (D a) 80 mm

Shank diameter (d 1) 27 mm

Functional length (l 4) 50 mm

Cutting edge length (L c) 8 mm

Number of teeth (Z) 7

weight of item 0,82 kg

Number of indexable inserts (No. of indexable inserts) 7

DESCRIPTION & FEATURES

Round insert milling cutters M5468 • Parallel bore DIN 138 transverse keyway • metric • RO .. 1605 .. • Dc=64mm • Z=7

Article number (J21):

M5468-080-B27-07-08

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

64 mm

Cutting diameter maximum (A2):

80 mm

Body diameter (A3):

76,35 mm

Hub diameter (A4):

60 mm

Counterbore diameter connection bore (A5):

42,36 mm

Cutting depth maximum (B2):

8 mm

Overall length (B5):

50 mm

Counterbore depth connection bore (B6):

6,75 mm

Connection code type machine side (C11):

FDA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0270

Connection diameter machine side (C3):

27 mm

Adjustment property (D4):

Rotational speed maximum (D6):

18100 1/min

Weight of item (D7):

0,818 kg

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

7,8 °

Plunge depth maximum (E5):

1,25 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Corner radius insert, position A (G14):

8 mm

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO6462

Standard letter to the standard number (J11):

Data chip provision (J7):
