Routing cutters M4791.035-W31-01-12

€

333.00

EX VAT

€

409.59

INC VAT

Walter

Routing cutters M4791.035-W31-01-12

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

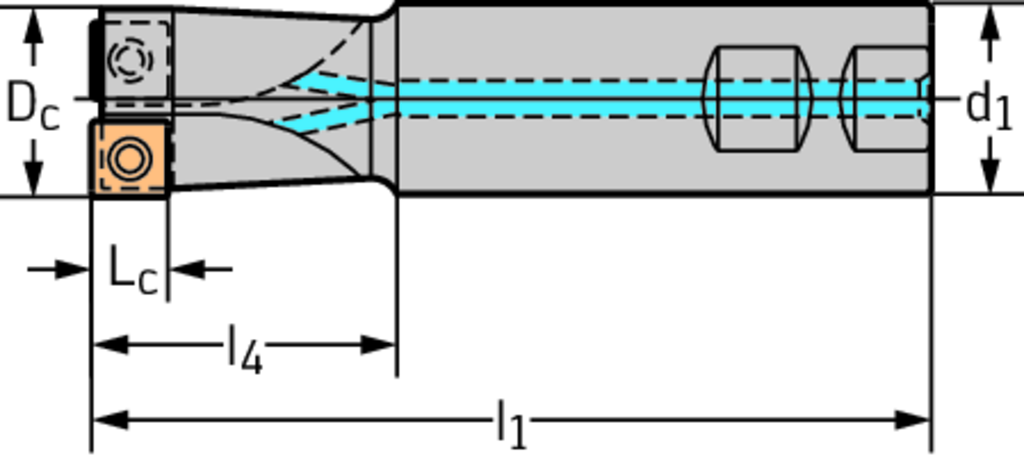

Tool designation (Designation) M4791.035-W31-01-12

Cutting edge diameter (D c) 1,375 inch

connection diameter (d 1) 1 1/4 inch

Maximum projection length (l 4) 1,5 inch

overall length (l 1) 3,82 inch

Cutting edge length (L c) 0,457 inch

Number of teeth (Z) 1

weight of item 0,4 lbs

Number of indexable inserts (No. of indexable inserts) 2

Insert Shape M4

DESCRIPTION & FEATURES

Routing cutters M4791 • DIN 1835 B shank • κ=90° • inch • SD .. 1204 .. • Dc=35mm • Z=1

Article number (J21):

M4791.035-W31-01-12

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

34,92 mm

Body diameter (A3):

32,85 mm

Depth of cut maximum (B2):

11,6 mm

Protruding length (B3):

38,1 mm

Usable length (B4):

38,1 mm

Overall length (B5):

97,03 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1250

Connection diameter machine side (C3):

31,75 mm

ISO-tolerance class shank diameter (C31):

Rotational speed maximum (D6):

7200 1/min

Weight of item (D7):

0,444 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

15 °

Plunge depth maximum (E5):

1,7 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO3338-2

Standard letter to the standard number (J11):

Data chip provision (J7):
