Shank tool - Rigid clamping CRSN...-P CRSNL2525X12-PShank tool - Rigid clamping CRSN...-P CRSNL2525X12-P
Shank tool - Rigid clamping CRSN...-P CRSNL2525X12-P Shank tool - Rigid clamping CRSN...-P CRSNL2525X12-P

Shank tool - Rigid clamping CRSN...-P CRSNL2525X12-P

€
248.00
EX VAT
€
305.04
INC VAT
Walter
Shank tool - Rigid clamping CRSN...-P CRSNL2525X12-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

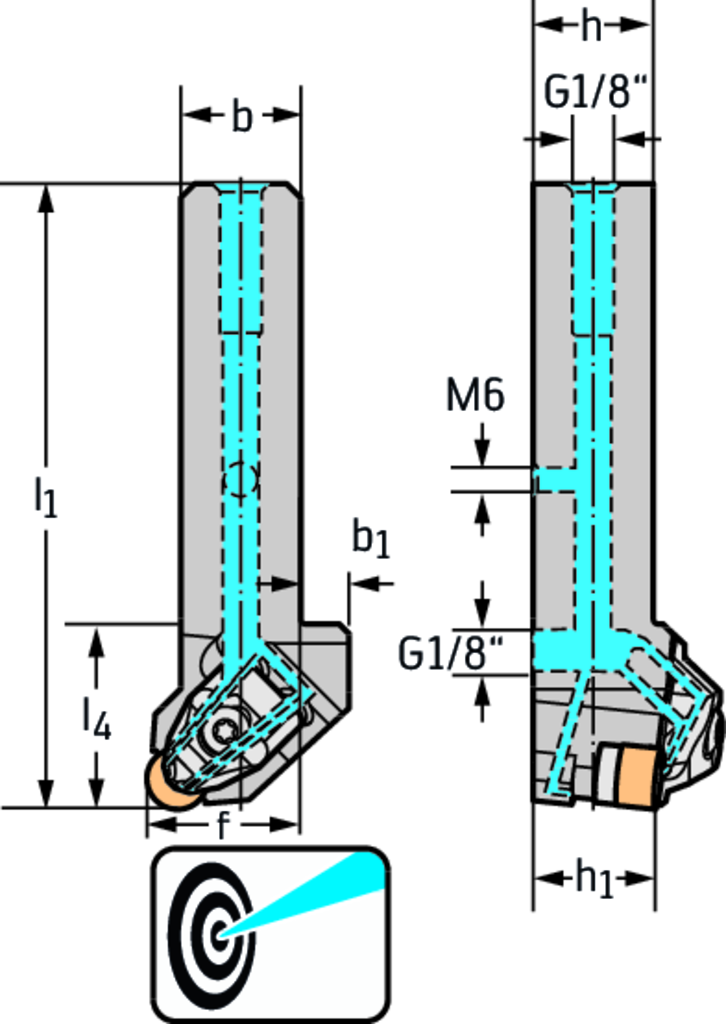

PRODUCT ATTRIBUTES
Tool designation (Designation) CRSNL2525X12-P
Shank height (h = h 1) 25 mm
shank width (b) 25 mm
Width (b 1) 10 mm
Functional width (f) 32 mm
Functional length (l 1) 130 mm
Functional length (l 4) 38,5 mm
Orthogonal rake angle (γ) -6 Deg
Inclination angle (λ s) -6 Deg
Insert Shape CR
DESCRIPTION & FEATURES
Shank tool - Rigid clamping CRSN...-P • Walter Turn • metric • Square shank • Left • 25x25mm • round insert • RN .. 1207 ..
Article number (J21):
CRSNL2525X12-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Functional width (A2):
32 mm
Functional length (A3):
130 mm
Functional height (A4):
25 mm
Overall length (B5):
130 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2525
Shank height (C4):
25 mm
Shank width (C5):
25 mm
Weight of item (D7):
0,7 kg
Tool cutting edge angle (E1):
0 °
Tool cutting edge angle type code (E2):
S
Rake angle orthogonal (E4):
-6 °
Inclination angle (E5):
-6 °
Cutting direction (F1):
Left
Clamping type code (F5):
C
Coolant entry style code (H21):
3
Coolant exit style code (H22):
7
Master insert identification (J42):
RNGN 12 07 00
Data chip provision (J7):
0
Protruding length (LPR):
130 mm
Insert Type:
RN .. 1207 ..
