Shank tool 3° – Radial grooving G3051...-P G3051.16L-MX22-2-PShank tool 3° – Radial grooving G3051...-P G3051.16L-MX22-2-P
Shank tool 3° – Radial grooving G3051...-P G3051.16L-MX22-2-P Shank tool 3° – Radial grooving G3051...-P G3051.16L-MX22-2-P

Shank tool 3° – Radial grooving G3051...-P G3051.16L-MX22-2-P

€
231.00
EX VAT
€
284.13
INC VAT
Walter
Shank tool 3° – Radial grooving G3051...-P G3051.16L-MX22-2-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

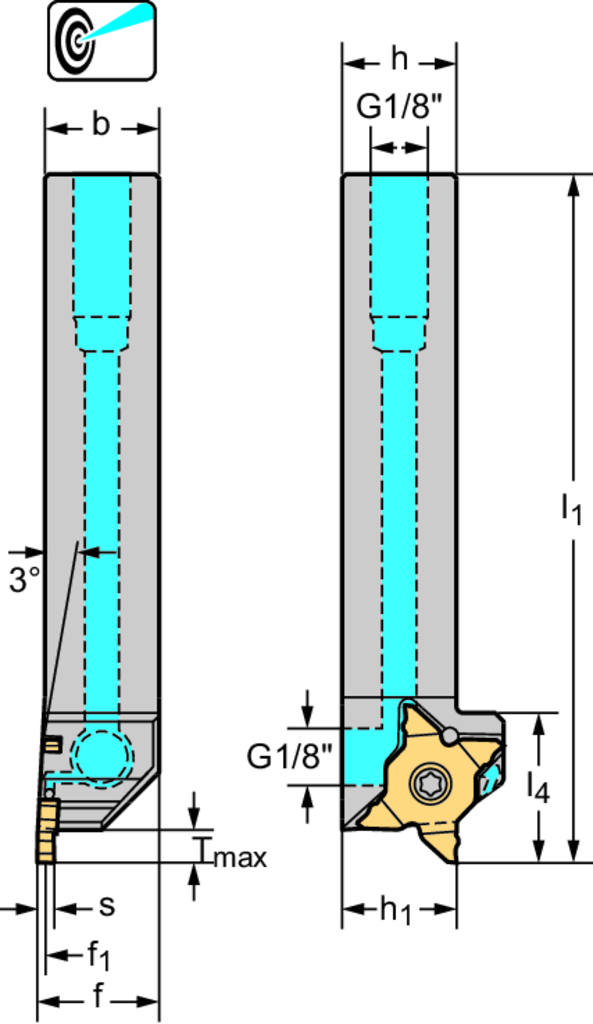

PRODUCT ATTRIBUTES
Tool designation (Designation) G3051.16L-MX22-2-P
Insert width (s) 0,02 - 0,128 inch
Maximum cutting depth (T max) 0,236 inch
Shank height (h = h 1) 1 inch
Shank width (b) 1 inch
Functional width (f 1) 1,053 inch
Overall length (l 1) 5,906 inch
Maximum projection length (l 4) 1,024 inch
Insert Shape G3
DESCRIPTION & FEATURES
Shank tool 3° – Radial grooving G3051...-P • Grooving and parting off on high shoulders • Precision cooling • inch • Square shank • Left • MX22 • s=1mm • Tmax=6mm
Article number (J21):
G3051.16L-MX22-2-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
0,5 mm
Functional length (A3):
150 mm
Functional height (A4):
25,4 mm
Cutting depth maximum (A8):
6 mm
Overall length (B5):
150 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
3
Connection code style machine side (C15):
5
Connection size code machine side (C2):
1616
Shank height (C4):
25,4 mm
Shank width (C5):
25,4 mm
Weight of item (D7):
0,379 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Left
Tool holder shape code (F2):
A
Clamping type code (F5):
S
Coolant entry style code (H21):
1
Coolant exit style code (H22):
7
Master insert identification (J42):
MX22-2
Data chip provision (J7):
0
Protruding length (LPR):
150 mm
