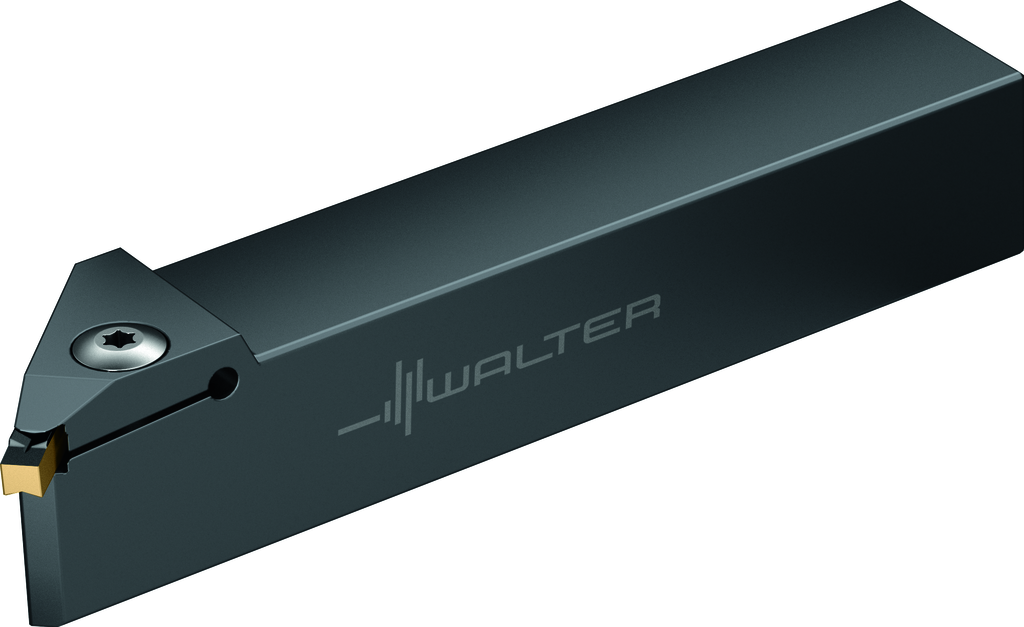

Shank tool – 45° universal G1551.2525R-T6GX24

Shank tool – 45° universal G1551.2525R-T6GX24

€

154.00

EX VAT

€

189.42

INC VAT

Walter

Shank tool – 45° universal G1551.2525R-T6GX24

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) G1551.2525R-T6GX24

Insert width (s) 2 - 6 mm

Maximum cutting depth (T max) 6 mm

Shank height (h = h 1) 25 mm

Shank width (b) 25 mm

Functional width (f 1) 28,2 mm

Functional length (l 21) 143,1 mm

Maximum projection length (l 4) 33,1 mm

Insert Shape G1

DESCRIPTION & FEATURES

Shank tool – 45° universal G1551 • Screw clamping • metric • Square shank • Right • GX24 • s=2mm • Tmax=6mm

Article number (J21):

G1551.2525R-T6GX24

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

2 mm

Functional height (A4):

25 mm

Cutting depth maximum (A8):

6 mm

Overall length (B5):

146,75 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

2525

Shank height (C4):

25 mm

Shank width (C5):

25 mm

Weight of item (D7):

0,659 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Right

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

GX24-X

Data chip provision (J7):

Protruding length (LPR):

146,75 mm
