Shank tool – 45° universal G1551.16R-T6GX24

Shank tool – 45° universal G1551.16R-T6GX24

€

154.00

EX VAT

€

189.42

INC VAT

Walter

Shank tool – 45° universal G1551.16R-T6GX24

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

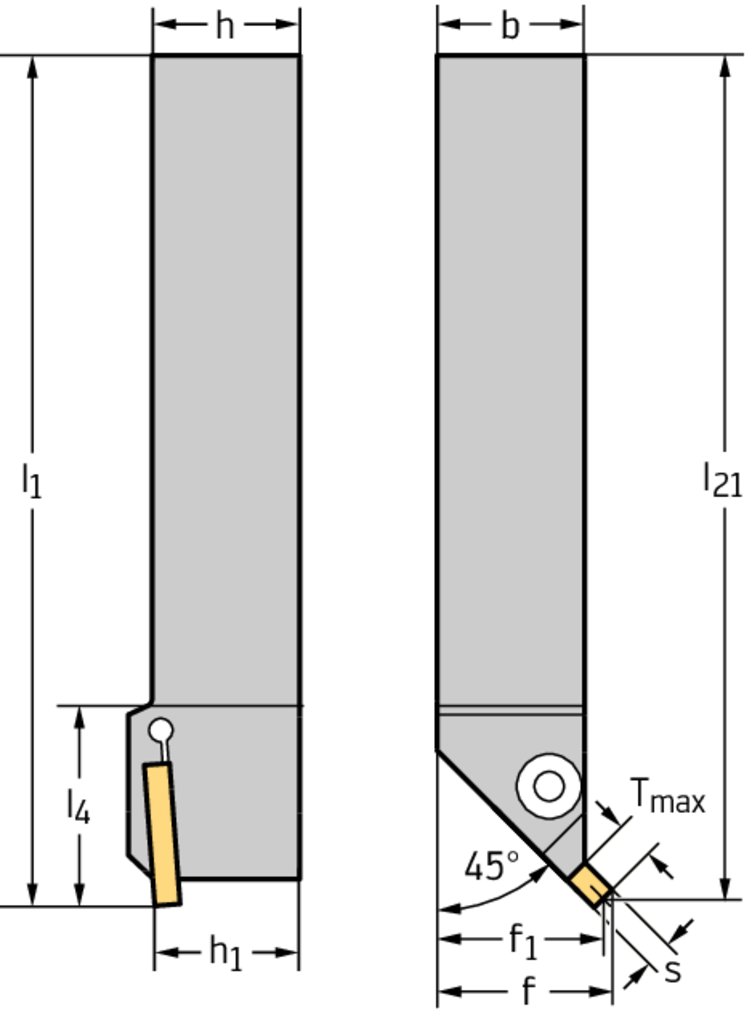

Tool designation (Designation) G1551.16R-T6GX24

Insert width (s) 0,079 - 0,236 inch

Maximum cutting depth (T max) 0,236 inch

Shank height (h = h 1) 1 inch

Shank width (b) 1 inch

Functional width (f 1) 1,122 inch

Functional length (l 21) 5,632 inch

Maximum projection length (l 4) 1,301 inch

Insert Shape G1

DESCRIPTION & FEATURES

Shank tool – 45° universal G1551 • Screw clamping • inch • Square shank • Right • GX24 • s=2mm • Tmax=6mm

Article number (J21):

G1551.16R-T6GX24

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

2 mm

Functional height (A4):

25,4 mm

Cutting depth maximum (A8):

6 mm

Overall length (B5):

146,75 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1616

Shank height (C4):

25,4 mm

Shank width (C5):

25,4 mm

Weight of item (D7):

0,681 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Right

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

GX24-X

Data chip provision (J7):

Protruding length (LPR):

146,75 mm
