Shank tool – 90° universal G1521.2020L-T4GX16Shank tool – 90° universal G1521.2020L-T4GX16
Shank tool – 90° universal G1521.2020L-T4GX16 Shank tool – 90° universal G1521.2020L-T4GX16

Shank tool – 90° universal G1521.2020L-T4GX16

€
137.00
EX VAT
€
168.51
INC VAT
Walter
Shank tool – 90° universal G1521.2020L-T4GX16
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

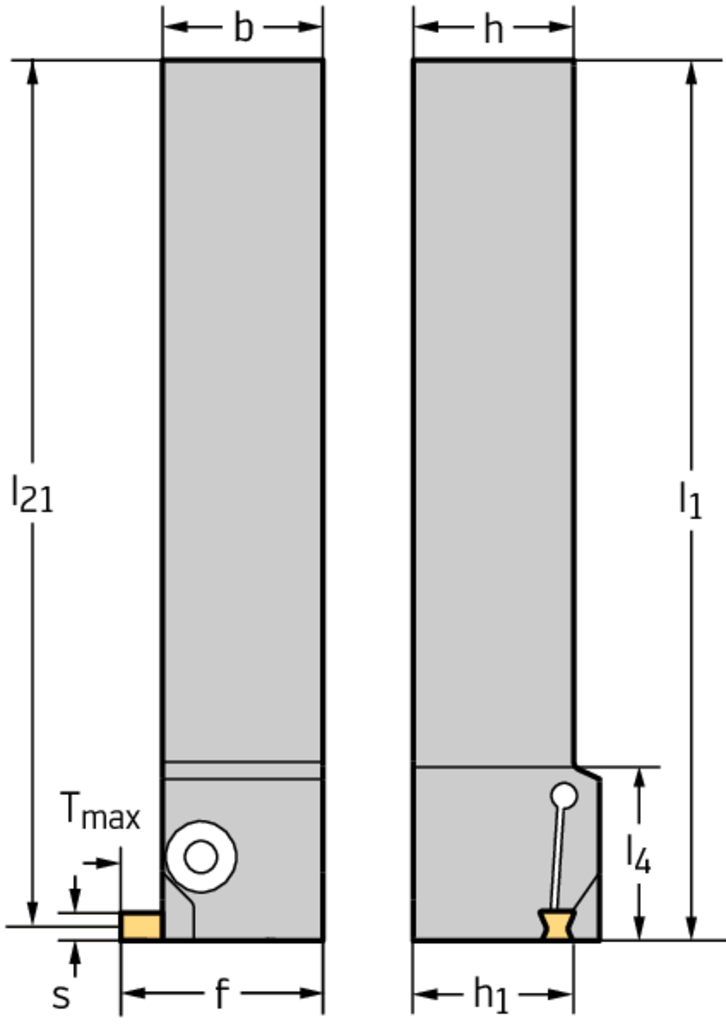

Tool designation (Designation) G1521.2020L-T4GX16
Insert width (s) 2 - 6 mm
Maximum cutting depth (T max) 4 mm
Shank height (h = h 1) 20 mm
Shank width (b) 20 mm
Functional width (f) 24,5 mm
Maximum projection length (l 4) 27 mm
functional length (l 21) 134,9 mm
DESCRIPTION & FEATURES
Shank tool – 90° universal G1521 • Screw clamping • metric • Square shank • Left • GX16 • s=2mm • Tmax=4mm
Article number (J21):
G1521.2020L-T4GX16
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
2 mm
Functional width (A2):
24,5 mm
Functional height (A4):
20 mm
Axial groove od min (A71):
114 mm
Cutting depth maximum (A8):
4 mm
Overall length (B5):
137,85 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2020
Shank height (C4):
20 mm
Shank width (C5):
20 mm
Weight of item (D7):
0,456 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Left
Tool holder shape code (F2):
G
Clamping type code (F5):
C
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
GX16-X
Data chip provision (J7):
0
Protruding length (LPR):
137,85 mm
