Shank tool – Axial grooving G1111...-P G1111.2525L-5T33060GX24P

Shank tool – Axial grooving G1111...-P G1111.2525L-5T33060GX24P

€

251.00

EX VAT

€

308.73

INC VAT

Walter

Shank tool – Axial grooving G1111...-P G1111.2525L-5T33060GX24P

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

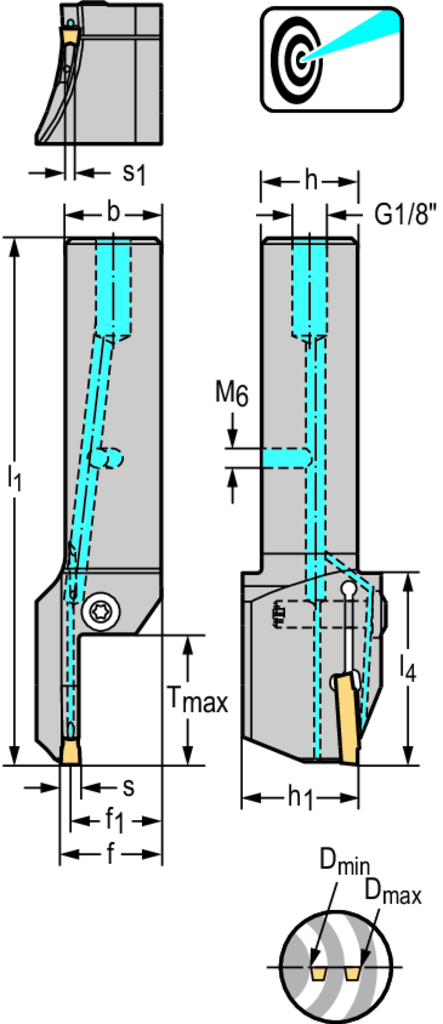

PRODUCT ATTRIBUTES

Tool designation (Designation) G1111.2525L-5T33060GX24P

Insert thickness (s) 5 mm

Maximum cutting depth (T max) 33 mm

Minimum diameter (D min) 60 mm

Maximum workpiece diameter (D max) 95 mm

Shank height (h = h 1) 25 mm

Shank width (b) 25 mm

Functional width (f 1) 23,7 mm

Overall length (l 1) 145 mm

Maximum projection length (l 4) 50 mm

Body width (s 1) 4,2 mm

Insert Shape G1

DESCRIPTION & FEATURES

Shank tool – Axial grooving G1111...-P • Precision cooling • Screw clamping • metric • Square shank • Left • GX24 • s=5mm • Tmax=33mm

Article number (J21):

G1111.2525L-5T33060GX24P

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

5 mm

Functional length (A3):

145 mm

Functional height (A4):

25 mm

Axial groove od min (A71):

70 mm

Axial groove od max (A72):

95 mm

Cutting depth maximum (A8):

33 mm

Overall length (B5):

145 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

2525

Shank height (C4):

25 mm

Shank width (C5):

25 mm

Weight of item (D7):

0,56 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Left

Tool holder shape code (F2):

Axial groove support direction (F4):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

GX24-3-5

Data chip provision (J7):

Protruding length (LPR):

145 mm
