Shank tool – Axial grooving G1111.2525R-3T12-130GX24

Shank tool – Axial grooving G1111.2525R-3T12-130GX24

€

168.00

EX VAT

€

206.64

INC VAT

Walter

Shank tool – Axial grooving G1111.2525R-3T12-130GX24

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

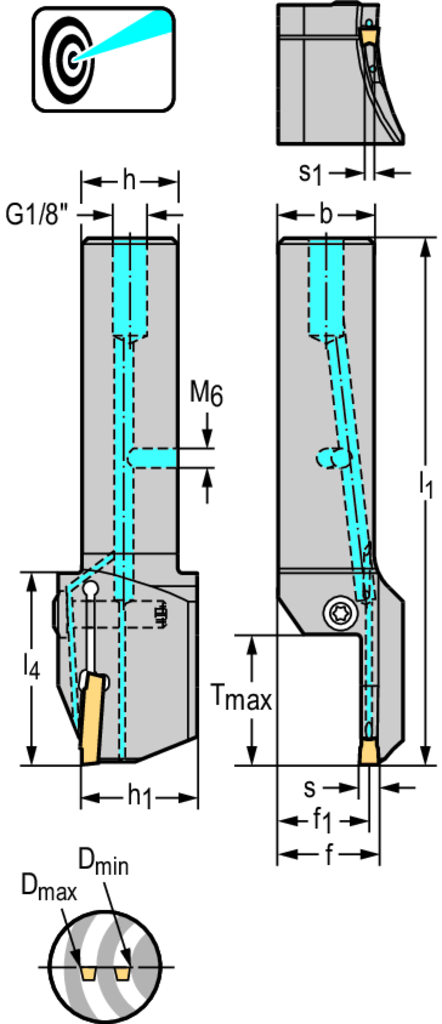

PRODUCT ATTRIBUTES

Tool designation (Designation) G1111.2525R-3T12-130GX24

Insert thickness (s) 3 mm

Maximum cutting depth (T max) 12 mm

Minimum diameter (D min) 130 mm

Maximum workpiece diameter (D max) 300 mm

Shank height (h = h 1) 25 mm

Shank width (b) 25 mm

Functional width (f 1) 24,6 mm

Overall length (l 1) 150 mm

Maximum projection length (l 4) 40 mm

Body width (s 1) 2,4 mm

Insert Shape G1

DESCRIPTION & FEATURES

Shank tool – Axial grooving G1111 • Screw clamping • metric • Square shank • Right • GX24 • s=3mm • Tmax=12mm

Article number (J21):

G1111.2525R-3T12-130GX24

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

3 mm

Functional length (A3):

150 mm

Functional height (A4):

25 mm

Axial groove od min (A71):

136 mm

Axial groove od max (A72):

300 mm

Cutting depth maximum (A8):

12 mm

Overall length (B5):

150 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

2525

Shank height (C4):

25 mm

Shank width (C5):

25 mm

Weight of item (D7):

0,704 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Right

Axial groove support direction (F4):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

GX24-2

Data chip provision (J7):

Protruding length (LPR):

150 mm
