Shank tool – Axial grooving G1111.16L-3T19-054GX24

Shank tool – Axial grooving G1111.16L-3T19-054GX24

€

168.00

EX VAT

€

206.64

INC VAT

Walter

Shank tool – Axial grooving G1111.16L-3T19-054GX24

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

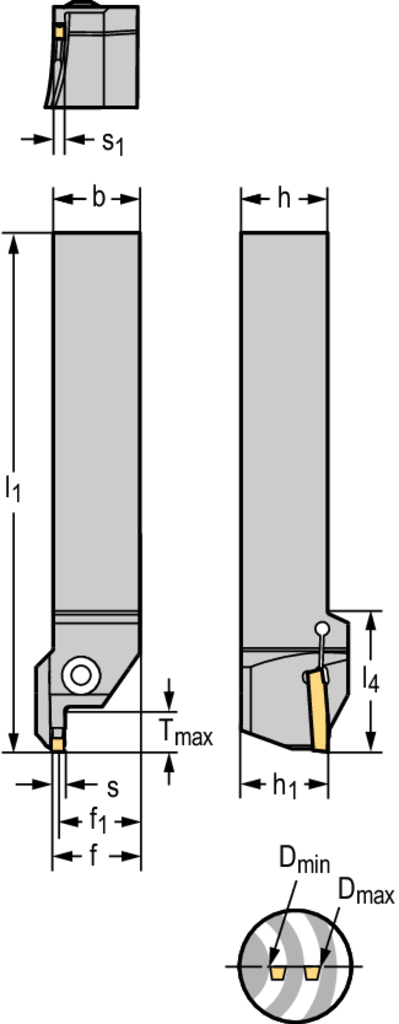

PRODUCT ATTRIBUTES

Tool designation (Designation) G1111.16L-3T19-054GX24

Insert thickness (s) 0,118 inch

Maximum cutting depth (T max) 0,748 inch

Minimum diameter (D min) 2,126 inch

Maximum workpiece diameter (D max) 2,953 inch

Shank height (h = h 1) 1 inch

Shank width (b) 1 inch

Functional width (f 1) 0,987 inch

Overall length (l 1) 5,984 inch

Maximum projection length (l 4) 1,654 inch

Body width (s 1) 0,095 inch

Insert Shape G1

DESCRIPTION & FEATURES

Shank tool – Axial grooving G1111 • Screw clamping • inch • Square shank • Left • GX24 • s=3mm • Tmax=19mm

Article number (J21):

G1111.16L-3T19-054GX24

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

3 mm

Functional length (A3):

152 mm

Functional height (A4):

25,4 mm

Axial groove od min (A71):

60 mm

Axial groove od max (A72):

75 mm

Cutting depth maximum (A8):

19 mm

Overall length (B5):

152 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1616

Shank height (C4):

25,4 mm

Shank width (C5):

25,4 mm

Weight of item (D7):

0,714 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Left

Axial groove support direction (F4):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

GX24-2

Data chip provision (J7):

Protruding length (LPR):

152 mm
