Shank tool – External thread NTS-SE NTS-SER1212-3

Shank tool – External thread NTS-SE NTS-SER1212-3

€

130.00

EX VAT

€

159.90

INC VAT

Walter

Shank tool – External thread NTS-SE NTS-SER1212-3

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

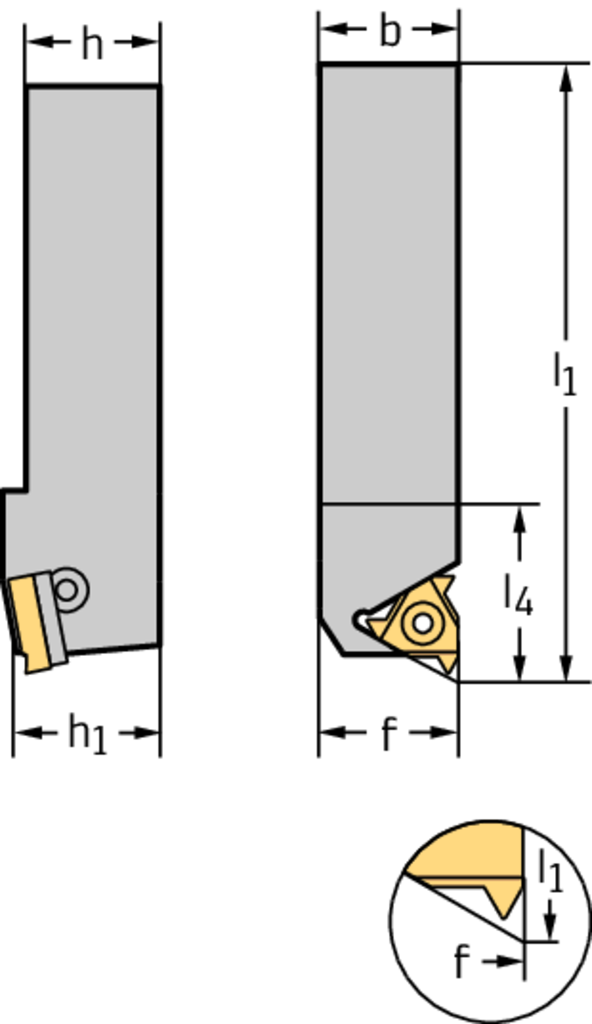

Tool designation (Designation) NTS-SER1212-3

insert interface code symbol 05 (insert interface code symbol 05) 16

Shank height (h = h 1) 0,75 inch

shank width (b) 0,75 inch

Functional width (f) 0,754 inch

overall length (l 1) 5 inch

Maximum projection length (l 4) 1,2 inch

Insert Shape NT

DESCRIPTION & FEATURES

Shank tool – External thread NTS-SE • inch • Right • 19x19mm

Article number (J21):

NTS-SER1212-3

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Functional width (A2):

19,151 mm

Functional length (A3):

127 mm

Functional height (A4):

19,05 mm

Overall length (B5):

127 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1212

Shank height (C4):

19,05 mm

Shank width (C5):

19,05 mm

Weight of item (D7):

0,371 kg

Tool cutting edge angle (E1):

90 °

Cutting direction (F1):

Right

Drop head design (F3):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

NTS-E-16

Data chip provision (J7):

Protruding length (LPR):

127 mm

Insert Type:

19x19mm
