Shank tool – External thread NTS-SE NTS-SER2020-16

Shank tool – External thread NTS-SE NTS-SER2020-16

€

135.00

EX VAT

€

166.05

INC VAT

Walter

Shank tool – External thread NTS-SE NTS-SER2020-16

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

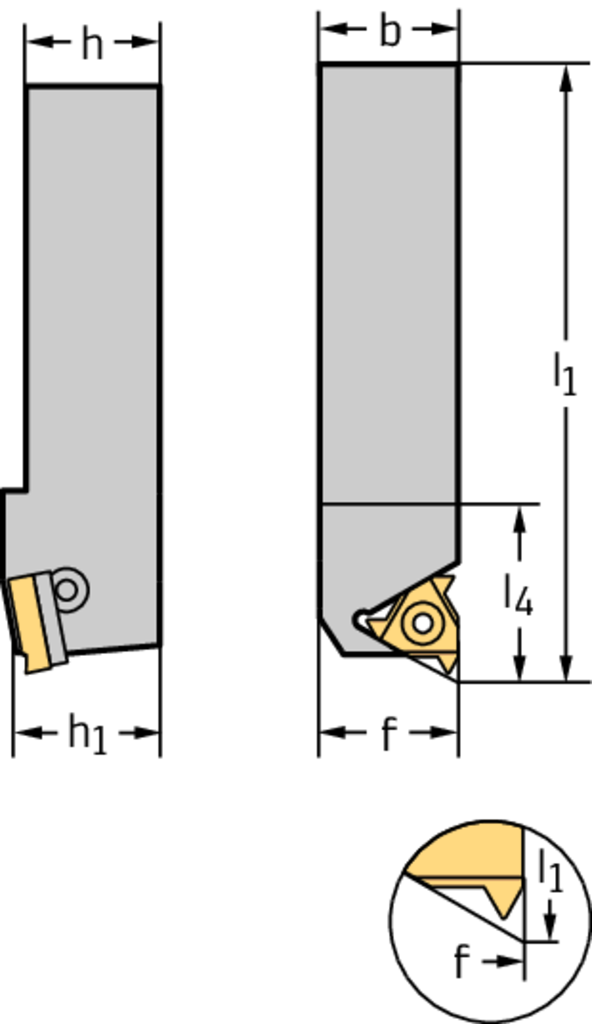

Tool designation (Designation) NTS-SER2020-16

insert interface code symbol 05 (insert interface code symbol 05) 16

shank height (h = h 1) 20 mm

shank width (b) 20 mm

Functional width (f) 20 mm

Overall length (l 1) 128,6 mm

Maximum projection length (l 4) 30 mm

Insert Shape NT

DESCRIPTION & FEATURES

Shank tool – External thread NTS-SE • metric • Right • 20x20mm

Article number (J21):

NTS-SER2020-16

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Functional width (A2):

20 mm

Functional length (A3):

128,6 mm

Functional height (A4):

20 mm

Head length (B1):

30 mm

Overall length (B5):

128,6 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

2020

Shank height (C4):

20 mm

Shank width (C5):

20 mm

Weight of item (D7):

0,424 kg

Tool cutting edge angle (E1):

90 °

Cutting direction (F1):

Right

Drop head design (F3):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

NTS-E-16

Data chip provision (J7):

Protruding length (LPR):

128,6 mm

Insert Type:

20x20mm
