Shank tool – Lever clamping PRDCN2020K10Shank tool – Lever clamping PRDCN2020K10
Shank tool – Lever clamping PRDCN2020K10 Shank tool – Lever clamping PRDCN2020K10

Shank tool – Lever clamping PRDCN2020K10

€
96.50
EX VAT
€
118.70
INC VAT
Walter
Shank tool – Lever clamping PRDCN2020K10
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

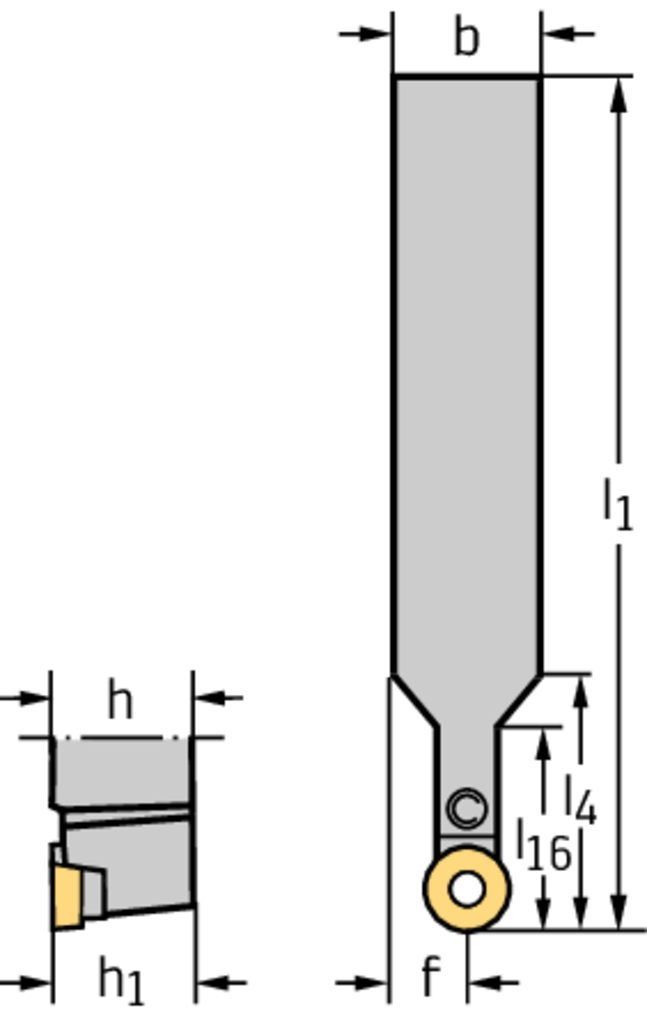

Tool designation (Designation) PRDCN2020K10
Shank height (h = h 1) 20 mm
Shank width (b) 20 mm
Functional width (f) 10 mm
Functional length (l 1) 125 mm
Maximum projection length (l 4) 25 mm
Orthogonal rake angle (γ) 0 Deg
Inclination angle (λ s) 0 Deg
Insert Shape PR
DESCRIPTION & FEATURES
Shank tool – Lever clamping PRDC • Walter Turn • metric • Square shank • κ=0° • neutral • 20x20mm • round insert • RC .. 10T3 ..
Article number (J21):
PRDCN2020K10
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Functional width (A2):
10 mm
Functional length (A3):
125 mm
Functional height (A4):
20 mm
Overall length (B5):
125 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2020
Shank height (C4):
20 mm
Shank width (C5):
20 mm
Weight of item (D7):
0,33 kg
Tool cutting edge angle (E1):
0 °
Tool cutting edge angle type code (E2):
S
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Neutral
Tool holder shape code (F2):
G
Clamping type code (F5):
P
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
RCMT 10 T3 M0
Data chip provision (J7):
0
Protruding length (LPR):
125 mm
Neck length (NECK_LENGTH):
25
Insert Type:
RC .. 10T3 ..
