Shank tool – modular MSS-...90 MSS-E20R90-2020J

Shank tool – modular MSS-...90 MSS-E20R90-2020J

€

158.00

EX VAT

€

194.34

INC VAT

Walter

Shank tool – modular MSS-...90 MSS-E20R90-2020J

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

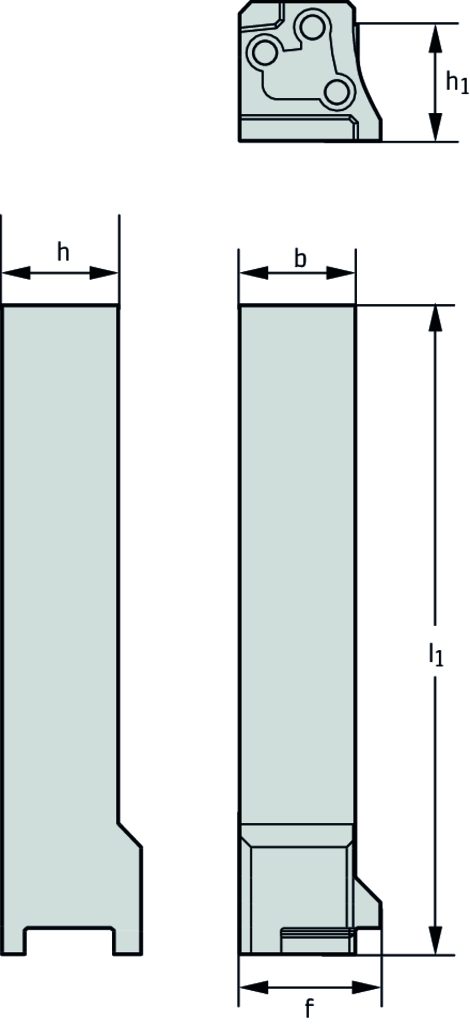

Tool designation (Designation) MSS-E20R90-2020J

Shank height (h = h 1) 20 mm

Shank width (b) 20 mm

Functional width (f) 24,5 mm

Overall length (l 1) 110 mm

Insert Shape MS

DESCRIPTION & FEATURES

Shank tool – modular MSS-...90 • Walter Cut • metric • Square shank • Right • 20x20mm

Article number (J21):

MSS-E20R90-2020J

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Protruding length (B3):

20 mm

Overall length (B4):

110 mm

Functional length (B71):

105,9 mm

Functional height (B72):

4 mm

Functional width (B73):

20 mm

Radial width (B92):

24,5 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

2020

Connection diameter machine side (C3):

20 mm

Connection code type workpiece side (C51):

PMA

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

R020

Weight of item (D7):

0,391 kg

Cutting direction (E1):

Right

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Data chip provision (J7):
