Shank tool – modular MSS-...90 MSS-E32L90-85-E

Shank tool – modular MSS-...90 MSS-E32L90-85-E

€

161.00

EX VAT

€

198.03

INC VAT

Walter

Shank tool – modular MSS-...90 MSS-E32L90-85-E

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

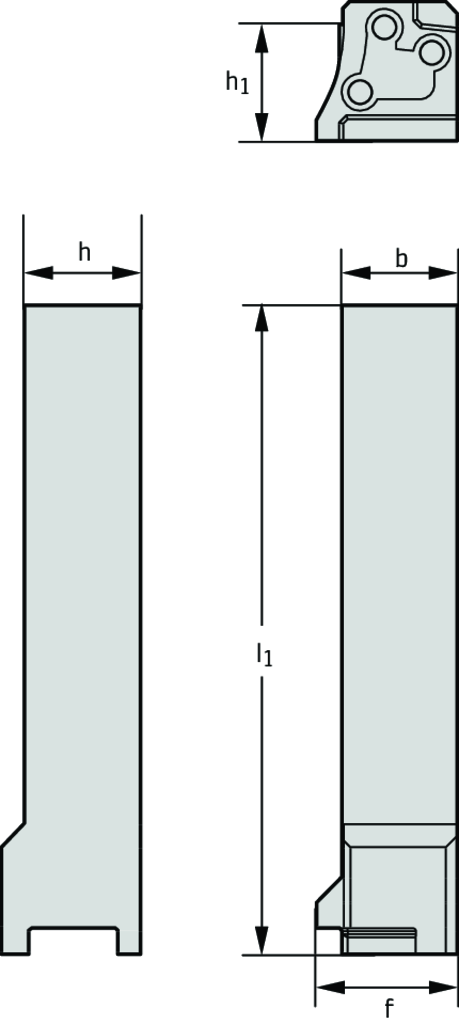

PRODUCT ATTRIBUTES

Tool designation (Designation) MSS-E32L90-85-E

Shank height (h = h 1) 1,25 inch

Shank width (b) 1 inch

Functional width (f) 1,476 inch

Overall length (l 1) 6,5 inch

Insert Shape MS

DESCRIPTION & FEATURES

Shank tool – modular MSS-...90 • Walter Cut • inch • Square shank • Left • 31,75x25,4mm

Article number (J21):

MSS-E32L90-85-E

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Protruding length (B3):

34 mm

Overall length (B4):

165,1 mm

Functional length (B71):

158,85 mm

Functional height (B72):

6,25 mm

Functional width (B73):

32 mm

Radial width (B92):

37,5 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

2016

Connection diameter machine side (C3):

32 mm

Connection code type workpiece side (C51):

PMA

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

L032

Weight of item (D7):

1,2 kg

Cutting direction (E1):

Left

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Data chip provision (J7):
