Shank tool – Radial grooving G2012...-P G2012.12L-3T33SX-PShank tool – Radial grooving G2012...-P G2012.12L-3T33SX-P
Shank tool – Radial grooving G2012...-P G2012.12L-3T33SX-P Shank tool – Radial grooving G2012...-P G2012.12L-3T33SX-P

Shank tool – Radial grooving G2012...-P G2012.12L-3T33SX-P

€
216.00
EX VAT
€
265.68
INC VAT
Walter
Shank tool – Radial grooving G2012...-P G2012.12L-3T33SX-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

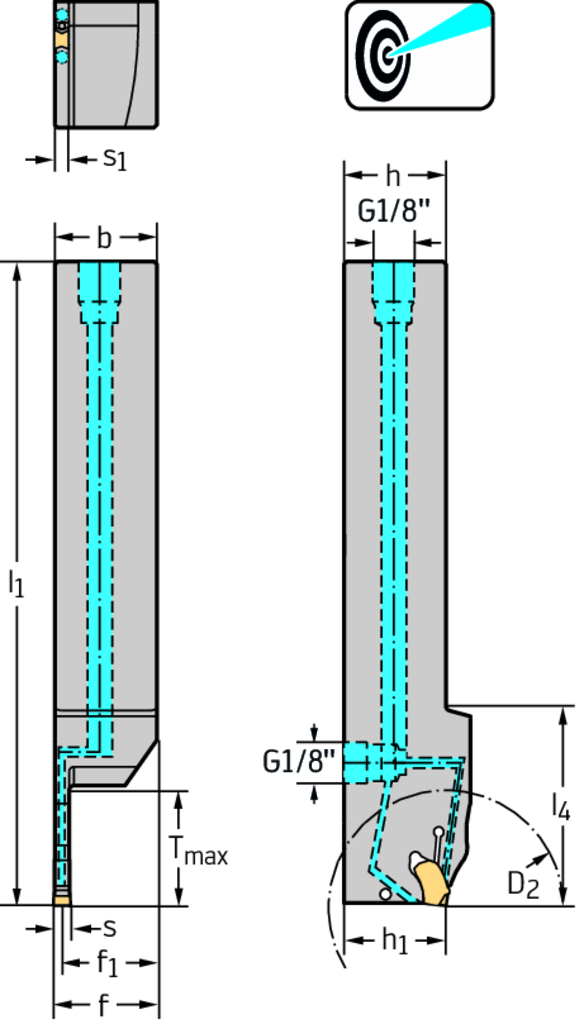

Tool designation (Designation) G2012.12L-3T33SX-P
Insert width (s) 0,118 - 0,118 inch
Maximum cutting depth (T max) 1,299 inch
work piece parting diameter maximum (D 2) 2,677 inch
Shank height (h = h 1) 0,75 inch
Shank width (b) 0,75 inch
Functional width (f 1) 0,702 inch
overall length (l 1) 5,906 inch
Maximum projection length (l 4) 1,496 inch
Body width (s 1) 0,097 inch
Insert Shape G2
DESCRIPTION & FEATURES
Shank tool – Radial grooving G2012...-P • Precision cooling • inch • Square shank • Left • SX00 • s=3mm • Tmax=33mm
Article number (J21):
G2012.12L-3T33SX-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
3 mm
Functional length (A3):
150 mm
Functional height (A4):
19,05 mm
Cutting depth maximum (A8):
33 mm
Overall length (B5):
150 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
3
Connection code style machine side (C15):
5
Connection size code machine side (C2):
1212
Shank height (C4):
19,05 mm
Shank width (C5):
19,05 mm
Weight of item (D7):
0,332 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Left
Tool holder shape code (F2):
G
Clamping type code (F5):
C
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Master insert identification (J42):
SX-3
Data chip provision (J7):
0
Protruding length (LPR):
150 mm
