Shank tool – Radial grooving G2016...-P G2016-3232N-19T40UX-PShank tool – Radial grooving G2016...-P G2016-3232N-19T40UX-P
Shank tool – Radial grooving G2016...-P G2016-3232N-19T40UX-P Shank tool – Radial grooving G2016...-P G2016-3232N-19T40UX-P

Shank tool – Radial grooving G2016...-P G2016-3232N-19T40UX-P

€
277.00
EX VAT
€
340.71
INC VAT
Walter
Shank tool – Radial grooving G2016...-P G2016-3232N-19T40UX-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

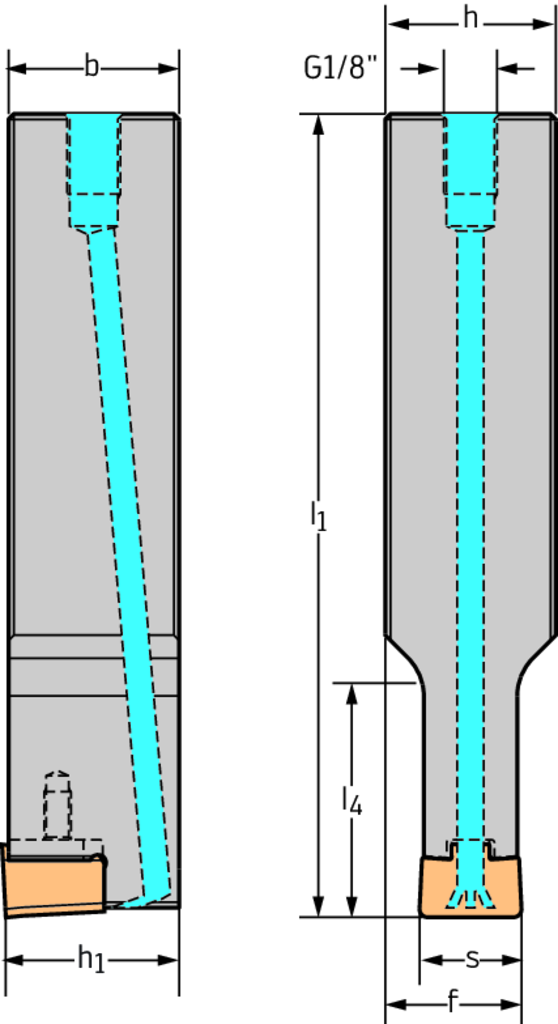

Tool designation (Designation) G2016-3232N-19T40UX-P
Insert width (s) 19 mm
Maximum cutting depth (T max) 41 mm
Shank height (h = h 1) 32 mm
Shank width (b) 32 mm
Functional width (f) 22,5 mm
Overall length (l 1) 150 mm
Maximum projection length (l 4) 53 mm
Insert Shape G2
DESCRIPTION & FEATURES
Shank tool – Radial grooving G2016...-P • Screw clamping • Precision cooling • metric • Square shank • neutral • UX00 • s=19mm • Tmax=41mm
Article number (J21):
G2016-3232N-19T40UX-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
19 mm
Functional length (A3):
150 mm
Functional height (A4):
32 mm
Cutting depth maximum (A8):
41 mm
Overall length (B5):
150 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
3232
Shank height (C4):
32 mm
Shank width (C5):
32 mm
Weight of item (D7):
0,96 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Neutral
Clamping type code (F5):
S
Coolant entry style code (H21):
1
Coolant exit style code (H22):
7
Data chip provision (J7):
0
Protruding length (LPR):
150 mm
