Shank tool – Radial grooving G3011...-P G3011-1616R-MX22-4-PShank tool – Radial grooving G3011...-P G3011-1616R-MX22-4-P
Shank tool – Radial grooving G3011...-P G3011-1616R-MX22-4-P Shank tool – Radial grooving G3011...-P G3011-1616R-MX22-4-P

Shank tool – Radial grooving G3011...-P G3011-1616R-MX22-4-P

€
189.00
EX VAT
€
232.47
INC VAT
Walter
Shank tool – Radial grooving G3011...-P G3011-1616R-MX22-4-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

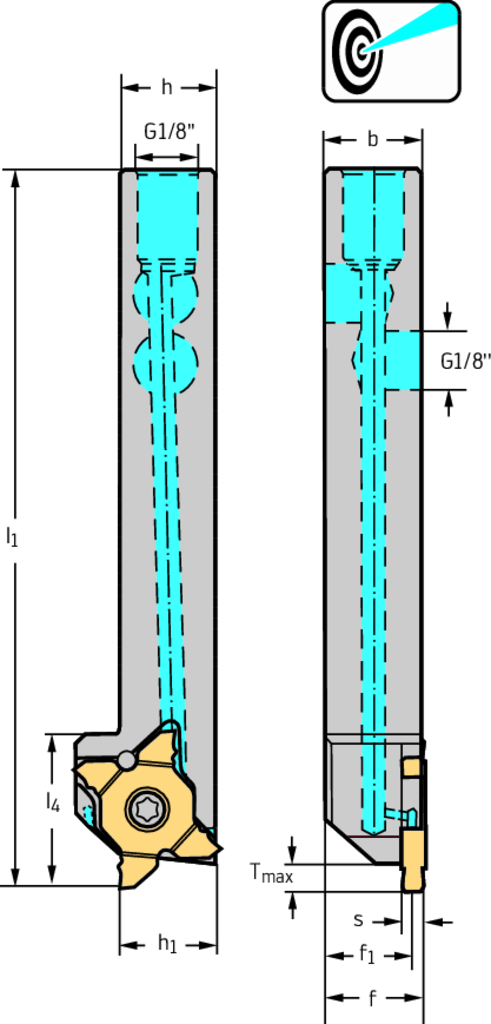

Tool designation (Designation) G3011-1616R-MX22-4-P
Insert width (s) 4 - 5,65 mm
Maximum cutting depth (T max) 6 mm
shank height (h = h 1) 16 mm
shank width (b) 16 mm
Functional width (f 1) 13,2 mm
Overall length (l 1) 120 mm
Maximum projection length (l 4) 26 mm
Insert Shape G3
DESCRIPTION & FEATURES
Shank tool – Radial grooving G3011...-P • Screw clamping • Precision cooling • metric • Square shank • Right • MX22 • s=4mm • Tmax=6mm
Article number (J21):
G3011-1616R-MX22-4-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
4 mm
Functional length (A3):
120 mm
Functional height (A4):
16 mm
Cutting depth maximum (A8):
6 mm
Overall length (B5):
120 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
1616
Shank height (C4):
16 mm
Shank width (C5):
16 mm
Weight of item (D7):
0,201 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Right
Clamping type code (F5):
S
Coolant entry style code (H21):
1
Coolant exit style code (H22):
7
Master insert identification (J42):
MX22-4
Data chip provision (J7):
0
Protruding length (LPR):
120 mm
