Shank tool – Radial grooving G4014...-P G4014.08R-3T12DX18-P

Shank tool – Radial grooving G4014...-P G4014.08R-3T12DX18-P

€

198.00

EX VAT

€

243.54

INC VAT

Walter

Shank tool – Radial grooving G4014...-P G4014.08R-3T12DX18-P

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

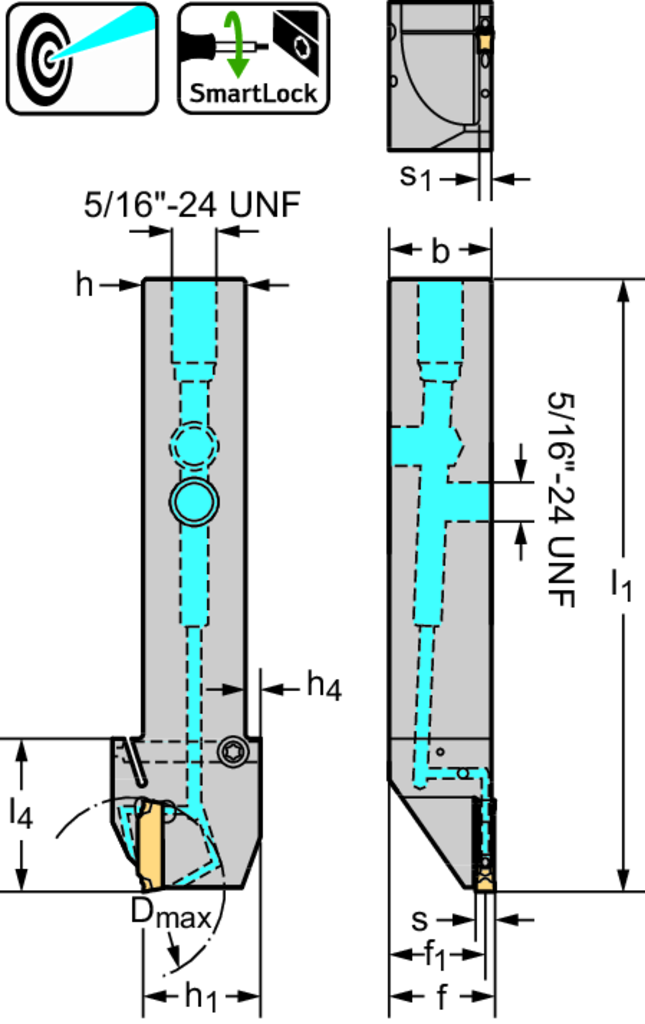

Tool designation (Designation) G4014.08R-3T12DX18-P

Insert width (s) 0,118 inch

Maximum grooving diameter (D max) 0,984 inch

Shank height (h = h 1) 0,5 inch

Shank width (b) 0,5 inch

Functional width (f 1) 0,453 inch

Overall length (l 1) 4,331 inch

Shank height (h 4) 0,091 inch

Maximum projection length (l 4) 0,878 inch

Body width (s 1) 0,095 inch

Insert Shape G4

DESCRIPTION & FEATURES

Shank tool – Radial grooving G4014...-P • Side screw clamping • Precision cooling • inch • Square shank • Right • DX18 • s=3mm • Tmax=12mm

Article number (J21):

G4014.08R-3T12DX18-P

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

3 mm

Functional length (A3):

110 mm

Functional height (A4):

12,7 mm

Axial groove od max (A72):

25 mm

Cutting depth maximum (A8):

12 mm

Overall length (B5):

110 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0808

Shank height (C4):

12,7 mm

Shank width (C5):

12,7 mm

Weight of item (D7):

0,112 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Right

Tool holder shape code (F2):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

DX18-3

Data chip provision (J7):

Protruding length (LPR):

110 mm
