Shank tool – Radial grooving G4014...-P G4014.12L-2T17DX18-P

Shank tool – Radial grooving G4014...-P G4014.12L-2T17DX18-P

€

208.00

EX VAT

€

255.84

INC VAT

Walter

Shank tool – Radial grooving G4014...-P G4014.12L-2T17DX18-P

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

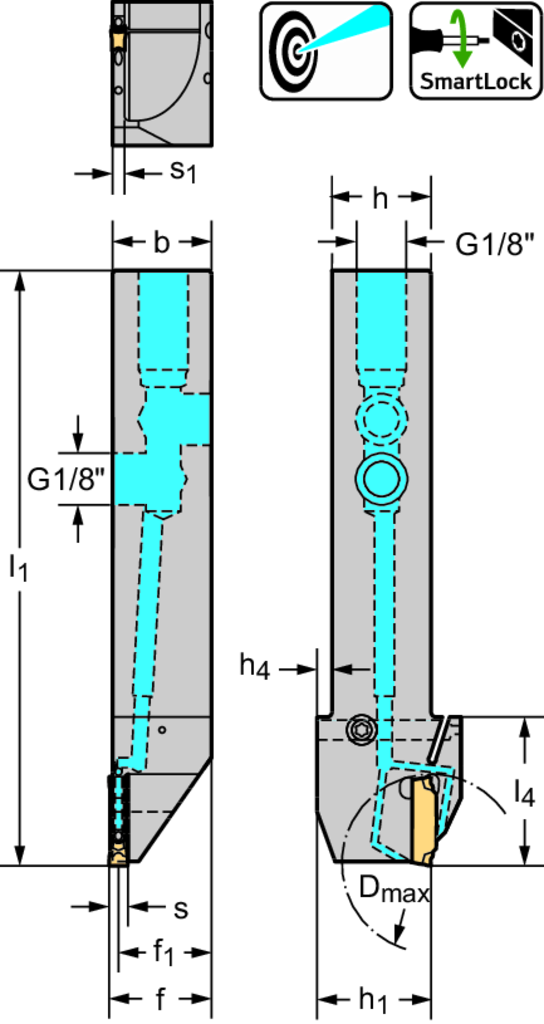

PRODUCT ATTRIBUTES

Tool designation (Designation) G4014.12L-2T17DX18-P

Insert width (s) 0,079 inch

Maximum grooving diameter (D max) 1,378 inch

Shank height (h = h 1) 0,75 inch

Shank width (b) 0,75 inch

Functional width (f 1) 0,717 inch

Overall length (l 1) 4,724 inch

Shank height (h 4) 0,118 inch

Maximum projection length (l 4) 1,181 inch

Body width (s 1) 0,063 inch

Insert Shape G4

DESCRIPTION & FEATURES

Shank tool – Radial grooving G4014...-P • Side screw clamping • Precision cooling • inch • Square shank • Left • DX18 • s=2mm • Tmax=18mm

Article number (J21):

G4014.12L-2T17DX18-P

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

2 mm

Functional length (A3):

120 mm

Functional height (A4):

19,05 mm

Axial groove od max (A72):

35 mm

Cutting depth maximum (A8):

17,5 mm

Overall length (B5):

120 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1212

Shank height (C4):

19,05 mm

Shank width (C5):

19,05 mm

Weight of item (D7):

0,28 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Left

Tool holder shape code (F2):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

DX18-2

Data chip provision (J7):

Protruding length (LPR):

120 mm
