Shank tool – Radial grooving G4014...-P G4014-2020R-3T17DX18-PShank tool – Radial grooving G4014...-P G4014-2020R-3T17DX18-P
Shank tool – Radial grooving G4014...-P G4014-2020R-3T17DX18-P Shank tool – Radial grooving G4014...-P G4014-2020R-3T17DX18-P

Shank tool – Radial grooving G4014...-P G4014-2020R-3T17DX18-P

€
238.00
EX VAT
€
292.74
INC VAT
Walter
Shank tool – Radial grooving G4014...-P G4014-2020R-3T17DX18-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

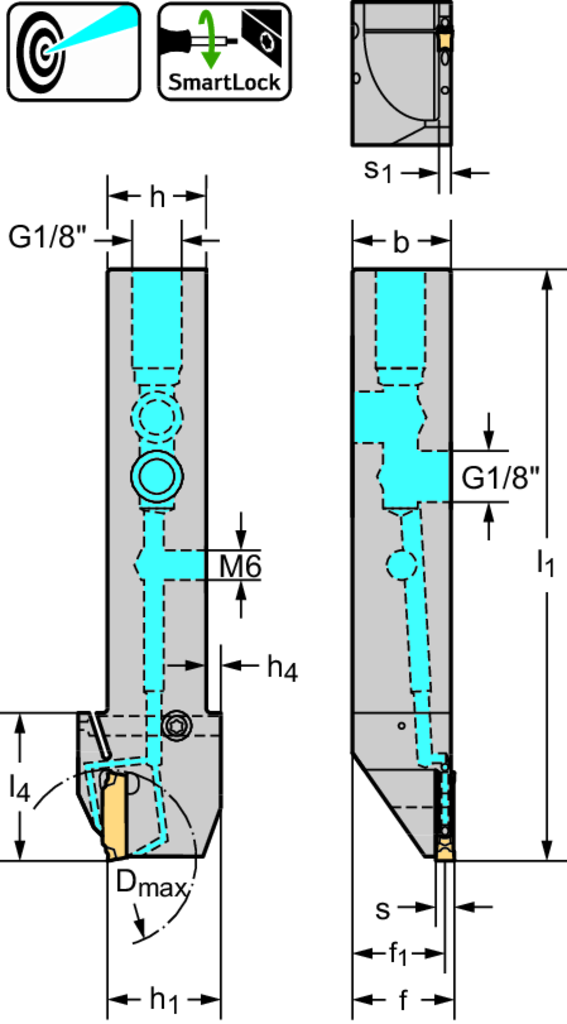

PRODUCT ATTRIBUTES
Tool designation (Designation) G4014-2020R-3T17DX18-P
Insert width (s) 3 mm
Maximum grooving diameter (D max) 35 mm
Shank height (h = h 1) 20 mm
shank width (b) 20 mm
Functional width (f 1) 18,8 mm
overall length (l 1) 120 mm
Shank height (h 4) 3 mm
Maximum projection length (l 4) 30 mm
Body width (s 1) 2,4 mm
Insert Shape G4
DESCRIPTION & FEATURES
Shank tool – Radial grooving G4014...-P • Side screw clamping • Precision cooling • metric • Square shank • Right • DX18 • s=3mm • Tmax=18mm
Article number (J21):
G4014-2020R-3T17DX18-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
3 mm
Functional length (A3):
120 mm
Functional height (A4):
20 mm
Axial groove od max (A72):
35 mm
Cutting depth maximum (A8):
17,5 mm
Overall length (B5):
120 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2020
Shank height (C4):
20 mm
Shank width (C5):
20 mm
Weight of item (D7):
0,31 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Right
Clamping type code (F5):
C
Coolant entry style code (H21):
1
Coolant exit style code (H22):
7
Master insert identification (J42):
DX18-3
Data chip provision (J7):
0
Protruding length (LPR):
120 mm
