Shank tool – Radial grooving G3011-1212L-MX22-2Shank tool – Radial grooving G3011-1212L-MX22-2
Shank tool – Radial grooving G3011-1212L-MX22-2 Shank tool – Radial grooving G3011-1212L-MX22-2

Shank tool – Radial grooving G3011-1212L-MX22-2

€
120.00
EX VAT
€
147.60
INC VAT
Walter
Shank tool – Radial grooving G3011-1212L-MX22-2
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

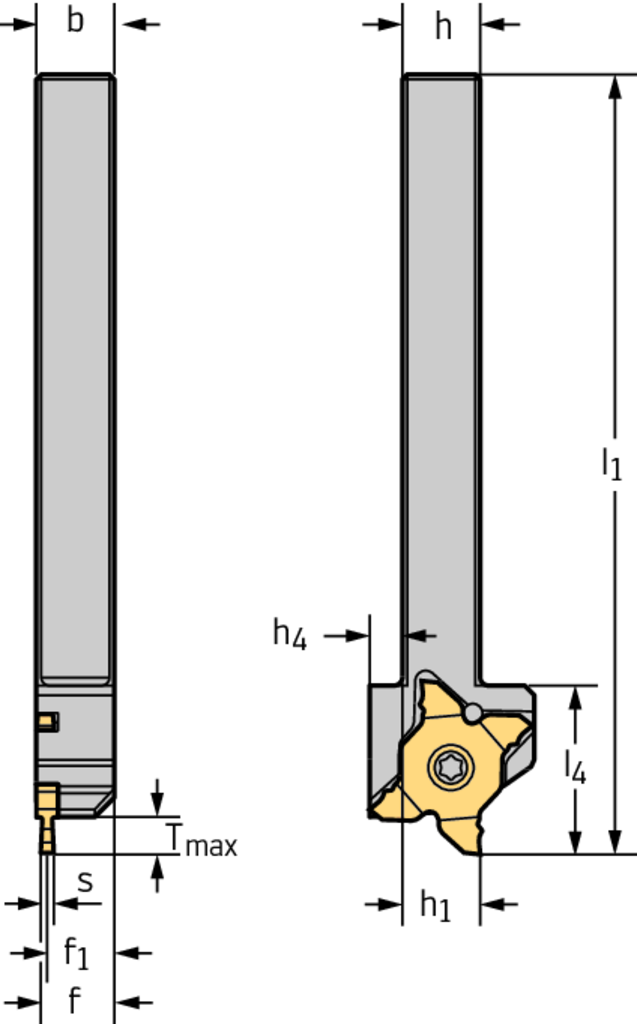

PRODUCT ATTRIBUTES
Tool designation (Designation) G3011-1212L-MX22-2
Insert width (s) 0,5 - 3,25 mm
Maximum cutting depth (T max) 6 mm
Shank height (h = h 1) 12 mm
Shank width (b) 12 mm
Functional width (f 1) 10,3 mm
Overall length (l 1) 120 mm
Shank height (h 4) 5 mm
Maximum projection length (l 4) 26 mm
Insert Shape G3
DESCRIPTION & FEATURES
Shank tool – Radial grooving G3011 • Screw clamping • metric • Square shank • Left • MX22 • s=1mm • Tmax=6mm
Article number (J21):
G3011-1212L-MX22-2
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
0,5 mm
Functional length (A3):
120 mm
Functional height (A4):
12 mm
Cutting depth maximum (A8):
6 mm
Overall length (B5):
120 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
1212
Shank height (C4):
12 mm
Shank width (C5):
12 mm
Weight of item (D7):
0,135 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Left
Tool holder shape code (F2):
G
Clamping type code (F5):
S
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
MX22-2
Data chip provision (J7):
0
Protruding length (LPR):
120 mm
