Shank tool – Radial grooving G3011-2525R-MX22-2

Shank tool – Radial grooving G3011-2525R-MX22-2

€

154.00

EX VAT

€

189.42

INC VAT

Walter

Shank tool – Radial grooving G3011-2525R-MX22-2

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

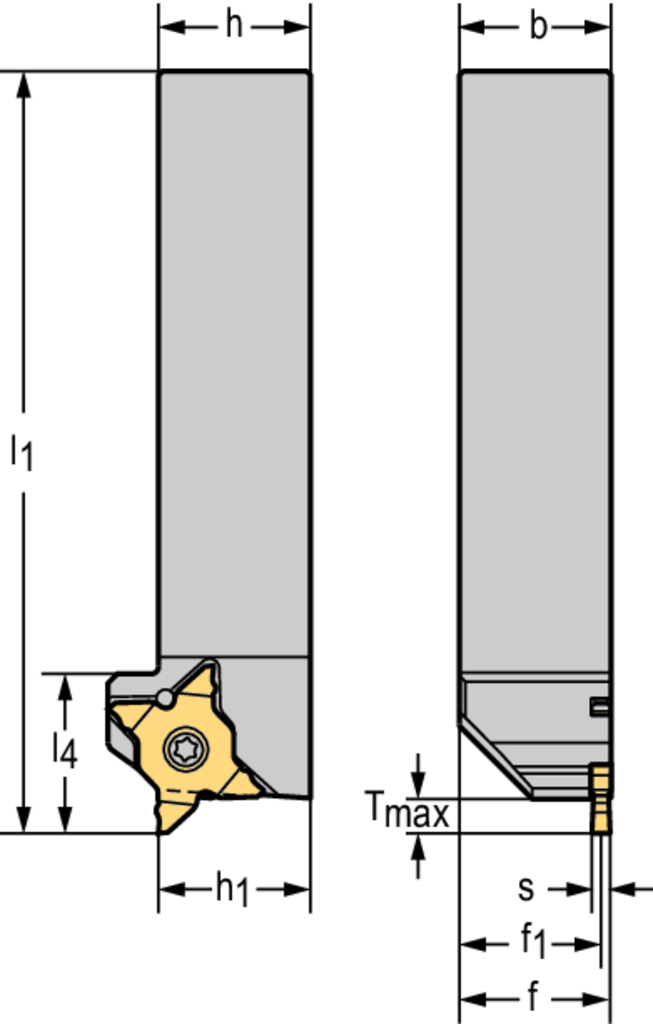

Tool designation (Designation) G3011-2525R-MX22-2

Insert width (s) 0,5 - 3,25 mm

Maximum cutting depth (T max) 6 mm

Shank height (h = h 1) 25 mm

Shank width (b) 25 mm

Functional width (f 1) 23,3 mm

Overall length (l 1) 125 mm

Maximum projection length (l 4) 26 mm

Insert Shape G3

DESCRIPTION & FEATURES

Shank tool – Radial grooving G3011 • Screw clamping • metric • Square shank • Right • MX22 • s=1mm • Tmax=6mm

Article number (J21):

G3011-2525R-MX22-2

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

0,5 mm

Functional length (A3):

125 mm

Functional height (A4):

25 mm

Cutting depth maximum (A8):

6 mm

Overall length (B5):

125 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

2525

Shank height (C4):

25 mm

Shank width (C5):

25 mm

Weight of item (D7):

0,577 kg

Tool cutting edge angle (E1):

90 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Right

Tool holder shape code (F2):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Data chip provision (J7):

Protruding length (LPR):

125 mm
