Shank tool – Radial grooving G4011-2020R-2T10DX18Shank tool – Radial grooving G4011-2020R-2T10DX18
Shank tool – Radial grooving G4011-2020R-2T10DX18 Shank tool – Radial grooving G4011-2020R-2T10DX18

Shank tool – Radial grooving G4011-2020R-2T10DX18

€
144.00
EX VAT
€
177.12
INC VAT
Walter
Shank tool – Radial grooving G4011-2020R-2T10DX18
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

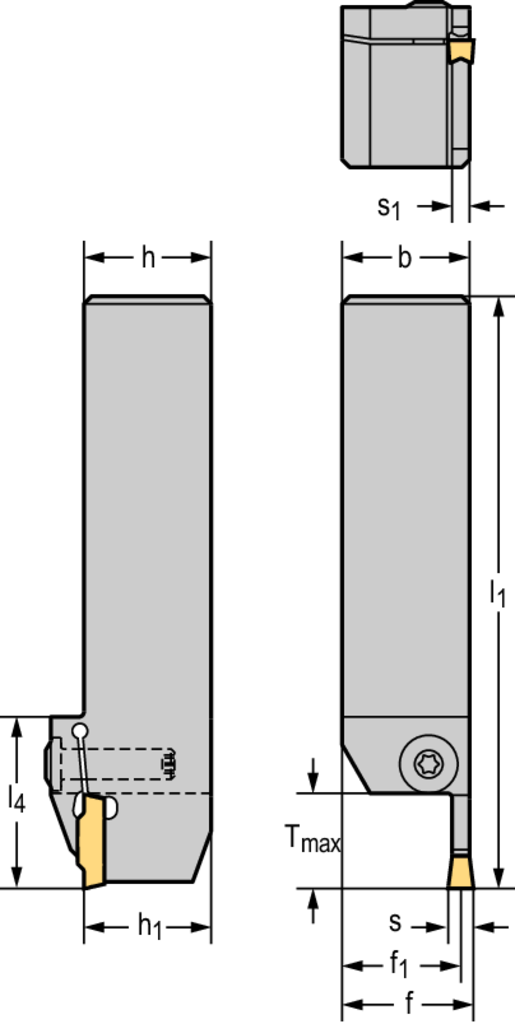

Tool designation (Designation) G4011-2020R-2T10DX18
Insert width (s) 2 mm
Maximum cutting depth (T max) 10 mm
Shank height (h = h 1) 20 mm
Shank width (b) 20 mm
Functional width (f 1) 19,2 mm
Overall length (l 1) 125 mm
Maximum projection length (l 4) 33,5 mm
Body width (s 1) 1,6 mm
Insert Shape G4
DESCRIPTION & FEATURES
Shank tool – Radial grooving G4011 • Screw clamping • metric • Square shank • Right • DX18 • s=2mm • Tmax=10mm
Article number (J21):
G4011-2020R-2T10DX18
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
2 mm
Functional length (A3):
125 mm
Functional height (A4):
20 mm
Cutting depth maximum (A8):
10 mm
Overall length (B5):
125 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2020
Shank height (C4):
20 mm
Shank width (C5):
20 mm
Weight of item (D7):
0,367 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Right
Tool holder shape code (F2):
G
Clamping type code (F5):
C
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
DX18-2
Data chip provision (J7):
0
Protruding length (LPR):
125 mm
