Shank tool – Radial grooving G4014-1010L-1T12DX18Shank tool – Radial grooving G4014-1010L-1T12DX18
Shank tool – Radial grooving G4014-1010L-1T12DX18 Shank tool – Radial grooving G4014-1010L-1T12DX18

Shank tool – Radial grooving G4014-1010L-1T12DX18

€
132.00
EX VAT
€
162.36
INC VAT
Walter
Shank tool – Radial grooving G4014-1010L-1T12DX18
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

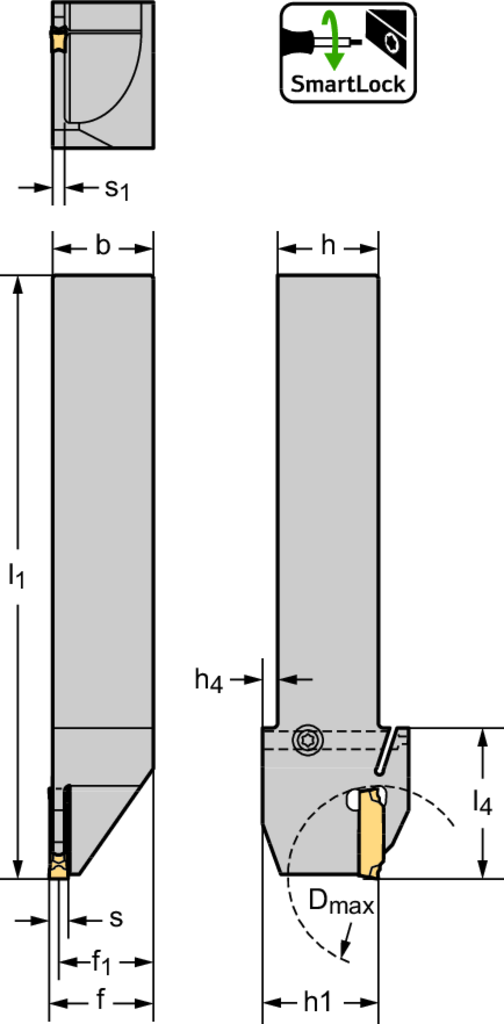

PRODUCT ATTRIBUTES
Tool designation (Designation) G4014-1010L-1T12DX18
Insert width (s) 1 mm
Maximum grooving diameter (D max) 25 mm
Shank height (h = h 1) 10 mm
shank width (b) 10 mm
Functional width (f 1) 9,6 mm
overall length (l 1) 110 mm
Shank height (h 4) 3,5 mm
Maximum projection length (l 4) 23 mm
Body width (s 1) 0,8 mm
Insert Shape G4
DESCRIPTION & FEATURES
Shank tool – Radial grooving G4014 • Side screw clamping • metric • Square shank • Left • DX18 • s=1mm • Tmax=12mm
Article number (J21):
G4014-1010L-1T12DX18
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
1 mm
Functional length (A3):
110 mm
Functional height (A4):
10 mm
Axial groove od max (A72):
25 mm
Cutting depth maximum (A8):
12 mm
Overall length (B5):
110 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
1010
Shank height (C4):
10 mm
Shank width (C5):
10 mm
Weight of item (D7):
0,084 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Left
Tool holder shape code (F2):
A
Clamping type code (F5):
C
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
DX18-1
Data chip provision (J7):
0
Protruding length (LPR):
110 mm
