Shank tool – Radial grooving G2012.12L-1.5T15SXShank tool – Radial grooving G2012.12L-1.5T15SX
Shank tool – Radial grooving G2012.12L-1.5T15SX Shank tool – Radial grooving G2012.12L-1.5T15SX

Shank tool – Radial grooving G2012.12L-1.5T15SX

€
144.00
EX VAT
€
177.12
INC VAT
Walter
Shank tool – Radial grooving G2012.12L-1.5T15SX
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

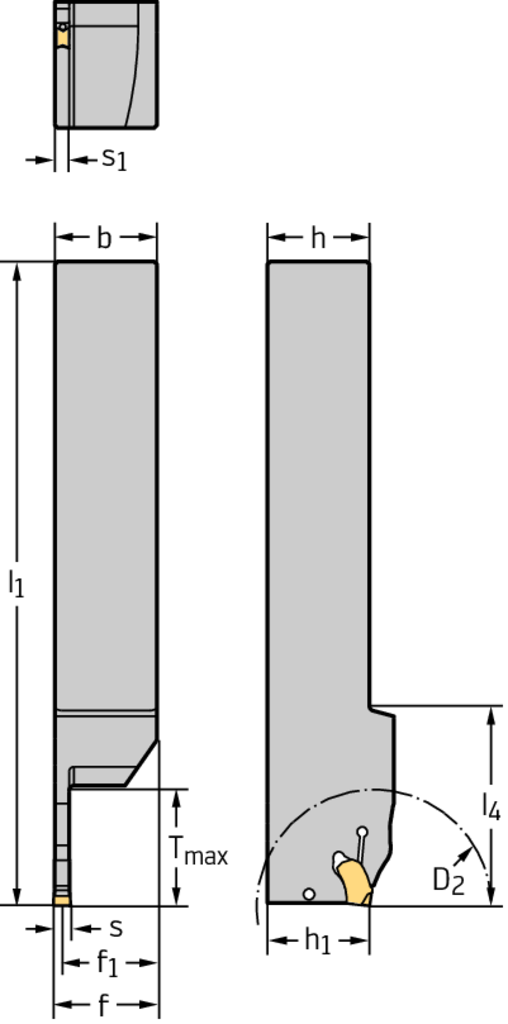

Tool designation (Designation) G2012.12L-1.5T15SX
Insert width (s) 0,059 - 0,059 inch
Maximum cutting depth (T max) 0,591 inch
work piece parting diameter maximum (D 2) 1,496 inch
Shank height (h = h 1) 0,75 inch
Shank width (b) 0,75 inch
Functional width (f 1) 0,726 inch
overall length (l 1) 4,724 inch
Maximum projection length (l 4) 0,984 inch
Body width (s 1) 0,047 inch
Insert Shape G2
DESCRIPTION & FEATURES
Shank tool – Radial grooving G2012 • Self-clamping system • inch • Square shank • Left • SX00 • s=2mm • Tmax=15mm
Article number (J21):
G2012.12L-1.5T15SX
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
1,5 mm
Functional length (A3):
120 mm
Functional height (A4):
19,05 mm
Cutting depth maximum (A8):
15 mm
Overall length (B5):
120 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
2
Connection code style machine side (C15):
5
Connection size code machine side (C2):
1212
Shank height (C4):
19,05 mm
Shank width (C5):
19,05 mm
Weight of item (D7):
0,299 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Left
Tool holder shape code (F2):
G
Clamping type code (F5):
C
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
SX-1,5
Data chip provision (J7):
0
Protruding length (LPR):
120 mm
