Shank tool – Rigid clamping DCLN...-P DCLNL2525X16-PShank tool – Rigid clamping DCLN...-P DCLNL2525X16-P
Shank tool – Rigid clamping DCLN...-P DCLNL2525X16-P Shank tool – Rigid clamping DCLN...-P DCLNL2525X16-P

Shank tool – Rigid clamping DCLN...-P DCLNL2525X16-P

€
248.00
EX VAT
€
305.04
INC VAT
Walter
Shank tool – Rigid clamping DCLN...-P DCLNL2525X16-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

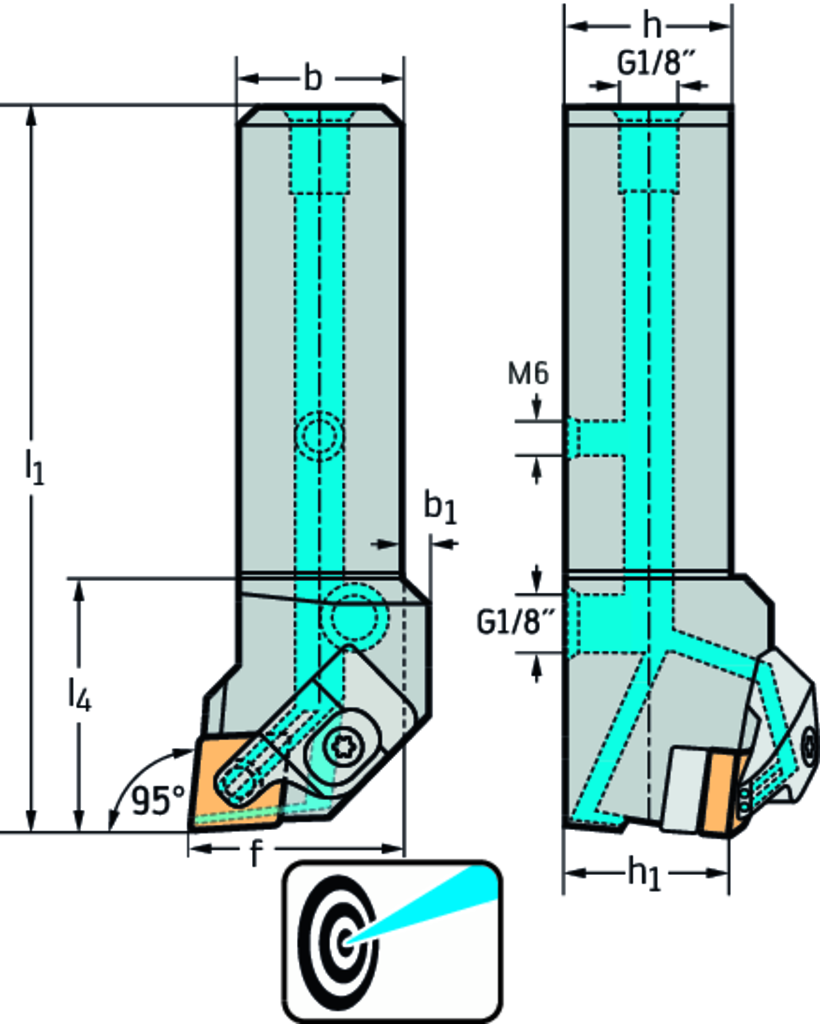

Tool designation (Designation) DCLNL2525X16-P
Shank height (h = h 1) 25 mm
shank width (b) 25 mm
Width (b 1) 12 mm
Functional width (f) 32 mm
Functional length (l 1) 135 mm
Functional length (l 4) 43,5 mm
Orthogonal rake angle (γ) -6 Deg
Inclination angle (λ s) -6 Deg
Insert Shape DC
DESCRIPTION & FEATURES
Shank tool – Rigid clamping DCLN...-P • Walter Turn • metric • Square shank • κ=95° • Left • 25x25mm • rhombic insert • CN .. 1606 ..
Article number (J21):
DCLNL2525X16-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
16,1 mm
Functional width (A2):
32 mm
Functional length (A3):
135 mm
Functional height (A4):
25 mm
Overall length (B5):
135 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2525
Shank height (C4):
25 mm
Shank width (C5):
25 mm
Weight of item (D7):
0,756 kg
Tool cutting edge angle (E1):
95 °
Tool cutting edge angle type code (E2):
B
Insert included angle (E3):
80 °
Rake angle orthogonal (E4):
-6 °
Inclination angle (E5):
-6 °
Cutting direction (F1):
Left
Clamping type code (F5):
D
Coolant entry style code (H21):
3
Coolant exit style code (H22):
7
Master insert identification (J42):
CNMG 16 06 12
Data chip provision (J7):
0
Protruding length (LPR):
24 mm
Insert Type:
CN .. 1606 ..
