Shank tool – Rigid clamping DSBN...-P DSBNR2525X12-PShank tool – Rigid clamping DSBN...-P DSBNR2525X12-P
Shank tool – Rigid clamping DSBN...-P DSBNR2525X12-P Shank tool – Rigid clamping DSBN...-P DSBNR2525X12-P

Shank tool – Rigid clamping DSBN...-P DSBNR2525X12-P

€
248.00
EX VAT
€
305.04
INC VAT
Walter
Shank tool – Rigid clamping DSBN...-P DSBNR2525X12-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

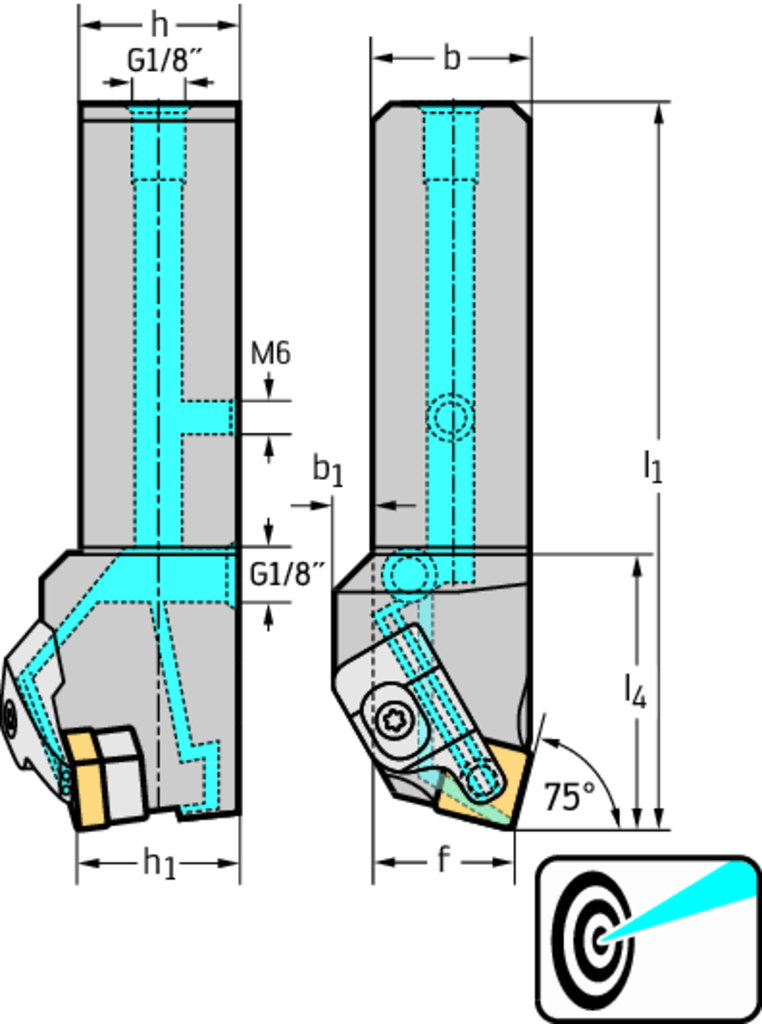

Tool designation (Designation) DSBNR2525X12-P
Shank height (h = h 1) 25 mm
shank width (b) 25 mm
Width (b 1) 7 mm
Functional width (f) 22 mm
Functional length (l 1) 135 mm
Functional length (l 4) 43,5 mm
Orthogonal rake angle (γ) -6 Deg
Inclination angle (λ s) -6 Deg
Insert Shape DS
DESCRIPTION & FEATURES
Shank tool – Rigid clamping DSBN...-P • Walter Turn • metric • Square shank • κ=75° • Right • 25x25mm • square insert • SN .. 1204 ..
Article number (J21):
DSBNR2525X12-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
12,7 mm
Functional width (A2):
22 mm
Functional length (A3):
135 mm
Functional height (A4):
25 mm
Overall length (B5):
135 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2525
Shank height (C4):
25 mm
Shank width (C5):
25 mm
Weight of item (D7):
0,705 kg
Tool cutting edge angle (E1):
75 °
Tool cutting edge angle type code (E2):
S
Insert included angle (E3):
90 °
Rake angle orthogonal (E4):
-6 °
Inclination angle (E5):
-6 °
Cutting direction (F1):
Right
Clamping type code (F5):
D
Coolant entry style code (H21):
3
Coolant exit style code (H22):
7
Master insert identification (J42):
SNMG 12 04 08
Data chip provision (J7):
0
Protruding length (LPR):
43,5 mm
Insert Type:
SN .. 1204 ..
