Shank tool – Rigid clamping DSSN...-P DSSNL2525X12-P

Shank tool – Rigid clamping DSSN...-P DSSNL2525X12-P

€

248.00

EX VAT

€

305.04

INC VAT

Walter

Shank tool – Rigid clamping DSSN...-P DSSNL2525X12-P

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

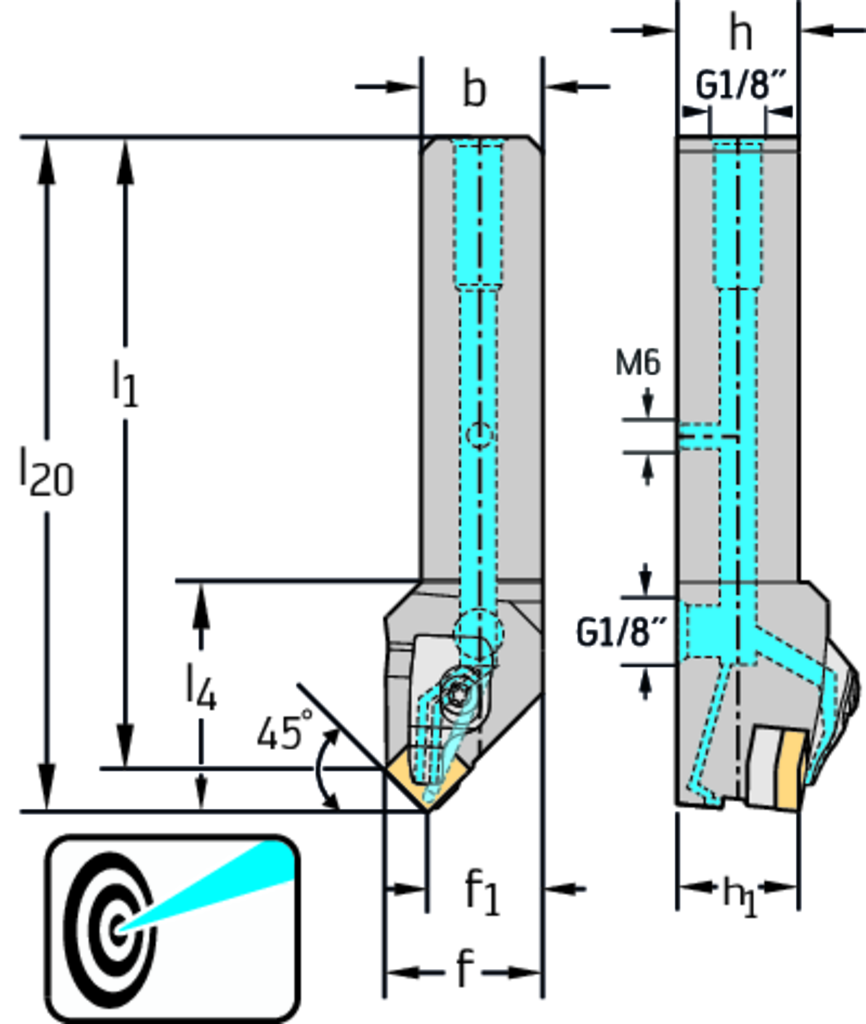

Tool designation (Designation) DSSNL2525X12-P

Shank height (h = h 1) 25 mm

shank width (b) 25 mm

Functional width (f) 32 mm

Functional width (f 1) 23,7 mm

Functional length (l 1) 130 mm

Maximum projection length (l 4) 48 mm

Overall length (l 20) 138,7 mm

Orthogonal rake angle (γ) -8 Deg

Inclination angle (λ s) 0 Deg

Insert Shape DS

DESCRIPTION & FEATURES

Shank tool – Rigid clamping DSSN...-P • Walter Turn • metric • Square shank • κ=45° • Left • 25x25mm • square insert • SN .. 1204 ..

Article number (J21):

DSSNL2525X12-P

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

12,7 mm

Functional width (A2):

32 mm

Functional length (A3):

138,65 mm

Functional height (A4):

25 mm

A dimension on lf (A52):

8,65 mm

Overall length (B5):

138,65 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

2525

Shank height (C4):

25 mm

Shank width (C5):

25 mm

Weight of item (D7):

0,695 kg

Tool cutting edge angle (E1):

45 °

Tool cutting edge angle type code (E2):

Insert included angle (E3):

90 °

Rake angle orthogonal (E4):

-8 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Left

Tool holder shape code (F2):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

SNMG 12 04 08

Data chip provision (J7):

Protruding length (LPR):

138,65 mm

Insert Type:

SN .. 1204 ..
