Shank tool – Rigid clamping DVJN...-P DVJNL123B-PShank tool – Rigid clamping DVJN...-P DVJNL123B-P
Shank tool – Rigid clamping DVJN...-P DVJNL123B-P Shank tool – Rigid clamping DVJN...-P DVJNL123B-P

Shank tool – Rigid clamping DVJN...-P DVJNL123B-P

€
280.00
EX VAT
€
344.40
INC VAT
Walter
Shank tool – Rigid clamping DVJN...-P DVJNL123B-P
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

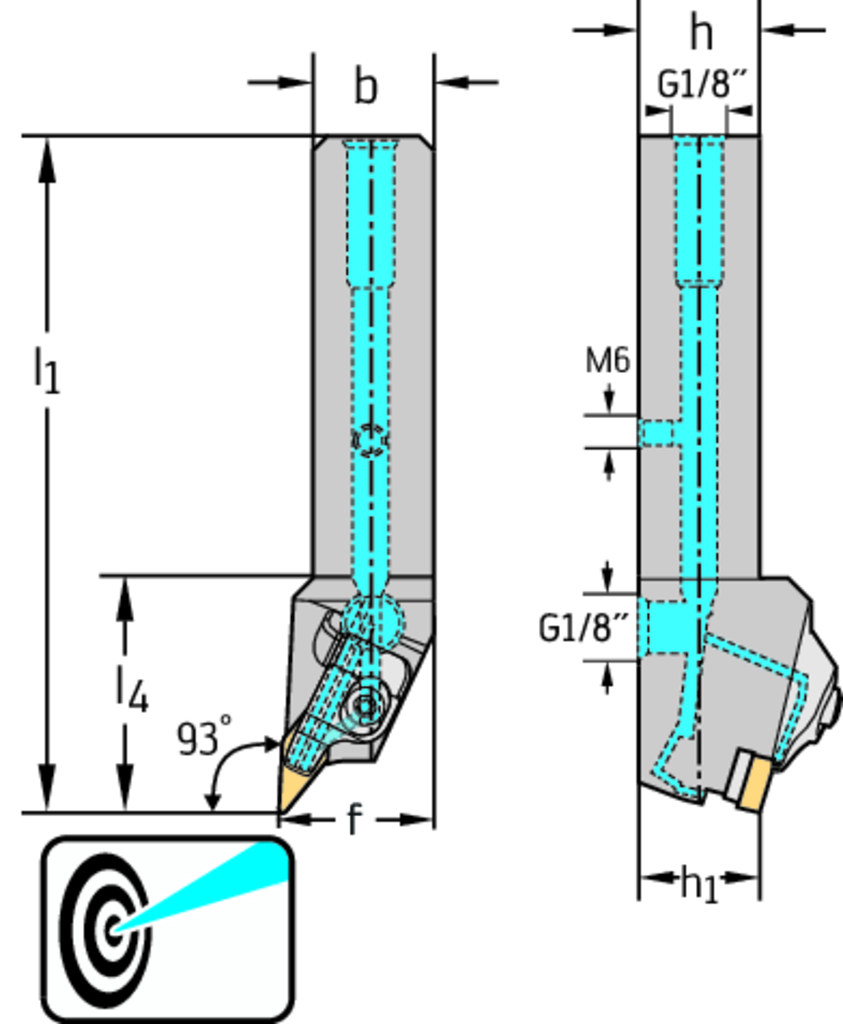

Tool designation (Designation) DVJNL123B-P
Shank height (h = h 1) 0,75 inch
shank width (b) 0,75 inch
Width (b 1) 0,158 inch
Functional width (f) 1 inch
Functional length (l 1) 4,496 inch
Functional length (l 4) 1,906 inch
Orthogonal rake angle (γ) -4 Deg
Inclination angle (λ s) -13 Deg
Insert Shape DV
DESCRIPTION & FEATURES
Shank tool – Rigid clamping DVJN...-P • Walter Turn • inch • Square shank • κ=93° • Left • 19x19mm • rhombic insert • VN .. 1604 ..
Article number (J21):
DVJNL123B-P
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
16,5 mm
Functional width (A2):
25,4 mm
Functional length (A3):
114,2 mm
Functional height (A4):
19,05 mm
Overall length (B5):
114,2 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
3
Connection code style machine side (C15):
5
Connection size code machine side (C2):
1212
Shank height (C4):
19,05 mm
Shank width (C5):
19,05 mm
Weight of item (D7):
0,4 kg
Tool cutting edge angle (E1):
93 °
Tool cutting edge angle type code (E2):
S
Insert included angle (E3):
35 °
Rake angle orthogonal (E4):
-4 °
Inclination angle (E5):
-13 °
Cutting direction (F1):
Left
Clamping type code (F5):
D
Coolant entry style code (H21):
3
Coolant exit style code (H22):
7
Master insert identification (J42):
VNMG 332
Data chip provision (J7):
0
Protruding length (LPR):
114,2 mm
Insert Type:
VN .. 1604 ..
