Shank tool – Rigid clamping DDPNN204D

€

138.00

EX VAT

€

169.74

INC VAT

Walter

Shank tool – Rigid clamping DDPNN204D

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

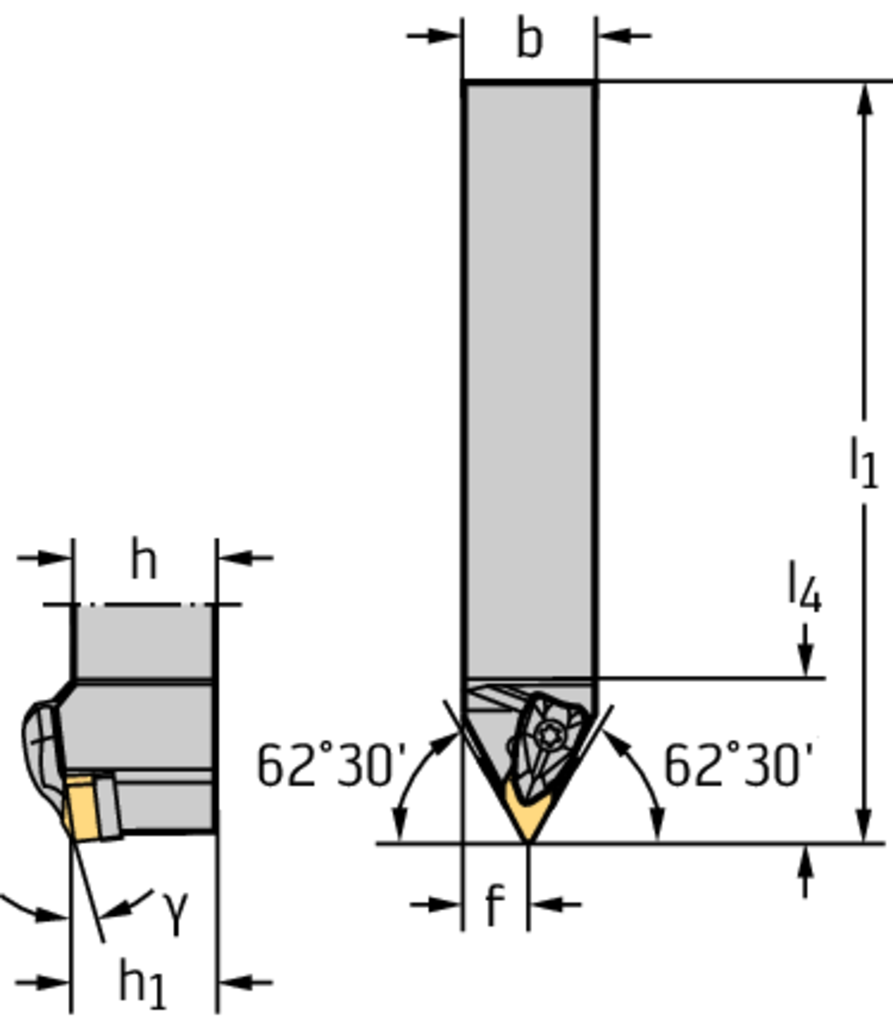

PRODUCT ATTRIBUTES

Tool designation (Designation) DDPNN204D

Shank height (h = h 1) 1,25 inch

Shank width (b) 1,25 inch

Functional width (f) 0,625 inch

Functional length (l 1) 6 inch

Maximum projection length (l 4) 1,61 inch

Orthogonal rake angle (γ) -5 Deg

Inclination angle (λ s) -9 Deg

Insert Shape DD

DESCRIPTION & FEATURES

Shank tool – Rigid clamping DDPN • Walter Turn • inch • Square shank • κ=93° • neutral • 32x32mm • rhombic insert • DN .. 1504 ..

Article number (J21):

DDPNN204D

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Cutting edge length (A1):

15,5 mm

Functional width (A2):

15,875 mm

Functional length (A3):

152,4 mm

Functional height (A4):

31,75 mm

Overall length (B5):

152,4 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

2020

Shank height (C4):

31,75 mm

Shank width (C5):

31,75 mm

Weight of item (D7):

1,12 kg

Tool cutting edge angle (E1):

62,5 °

Tool cutting edge angle type code (E2):

Insert included angle (E3):

55 °

Rake angle orthogonal (E4):

-5 °

Inclination angle (E5):

-9 °

Cutting direction (F1):

Neutral

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

DNMG 432

Data chip provision (J7):

Protruding length (LPR):

152,4 mm

Insert Type:

DN .. 1504 ..
