Shank tool – Rigid clamping DVPNL2525M16Shank tool – Rigid clamping DVPNL2525M16
Shank tool – Rigid clamping DVPNL2525M16 Shank tool – Rigid clamping DVPNL2525M16

Shank tool – Rigid clamping DVPNL2525M16

€
123.00
EX VAT
€
151.29
INC VAT
Walter
Shank tool – Rigid clamping DVPNL2525M16
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

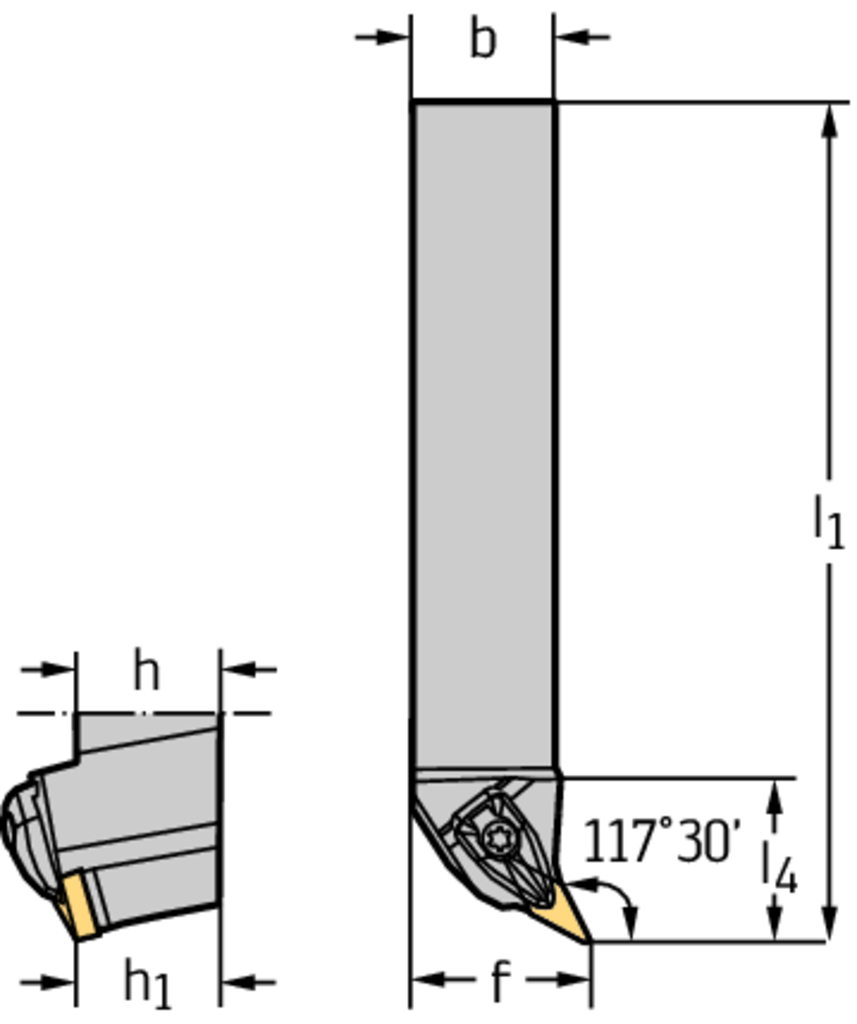

Tool designation (Designation) DVPNL2525M16
Shank height (h = h 1) 25 mm
Shank width (b) 25 mm
Functional width (f) 32 mm
Functional length (l 1) 150 mm
Maximum projection length (l 4) 39,2 mm
Orthogonal rake angle (γ) -4 Deg
Inclination angle (λ s) -13 Deg
Insert Shape DV
DESCRIPTION & FEATURES
Shank tool – Rigid clamping DVPN • Walter Turn • metric • Square shank • κ=117,5° • Left • 25x25mm • rhombic insert • VN .. 1604 ..
Article number (J21):
DVPNL2525M16
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
16,5 mm
Functional width (A2):
32 mm
Functional length (A3):
150 mm
Functional height (A4):
25 mm
Overall length (B5):
150 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2525
Shank height (C4):
25 mm
Shank width (C5):
25 mm
Weight of item (D7):
0,744 kg
Tool cutting edge angle (E1):
117,5 °
Tool cutting edge angle type code (E2):
S
Insert included angle (E3):
35 °
Rake angle orthogonal (E4):
-4 °
Inclination angle (E5):
-13 °
Cutting direction (F1):
Left
Clamping type code (F5):
D
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
VNMG 16 04 08
Data chip provision (J7):
0
Protruding length (LPR):
150 mm
Insert Type:
VN .. 1604 ..
