Shank tool – Rigid clamping CRDCN3225P12-A

Shank tool – Rigid clamping CRDCN3225P12-A

€

206.00

EX VAT

€

253.38

INC VAT

Walter

Shank tool – Rigid clamping CRDCN3225P12-A

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

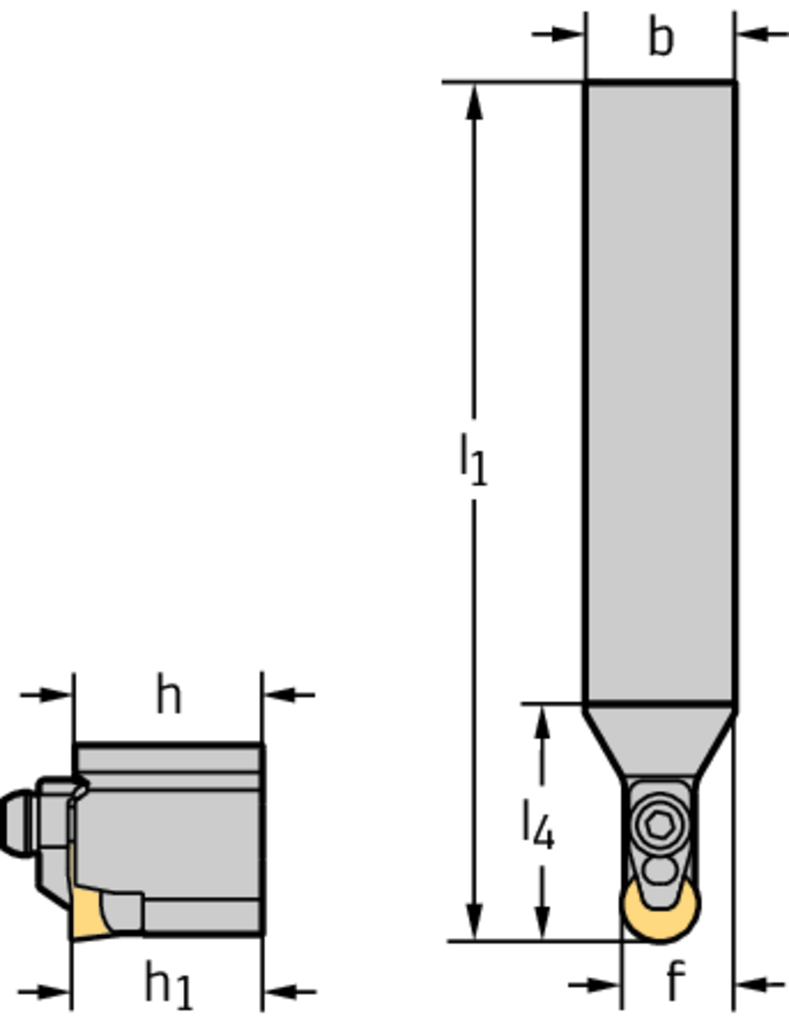

Tool designation (Designation) CRDCN3225P12-A

Shank height (h = h 1) 32 mm

Shank width (b) 25 mm

Functional width (f) 18,8 mm

Functional length (l 1) 170 mm

Maximum projection length (l 4) 40 mm

Orthogonal rake angle (γ) 0 Deg

Inclination angle (λ s) 0 Deg

Insert Shape CR

DESCRIPTION & FEATURES

Shank tool – Rigid clamping CRDC • Walter Turn • metric • Square shank • κ=0° • neutral • 32x25mm • round insert • RC .. 1207 ..

Article number (J21):

CRDCN3225P12-A

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Functional width (A2):

18,8 mm

Functional length (A3):

170 mm

Functional height (A4):

32 mm

Overall length (B5):

170 mm

Connection code type machine side (C11):

VKT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

3225

Shank height (C4):

32 mm

Shank width (C5):

25 mm

Weight of item (D7):

0,992 kg

Tool cutting edge angle (E1):

0 °

Tool cutting edge angle type code (E2):

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Neutral

Tool holder shape code (F2):

Clamping type code (F5):

Coolant entry style code (H21):

Coolant exit style code (H22):

Master insert identification (J42):

RCGX 12 07 00

Data chip provision (J7):

Protruding length (LPR):

170 mm

Insert Type:

RC .. 1207 ..
