Shank tool – Rigid clamping DSSNL3232P15Shank tool – Rigid clamping DSSNL3232P15
Shank tool – Rigid clamping DSSNL3232P15 Shank tool – Rigid clamping DSSNL3232P15

Shank tool – Rigid clamping DSSNL3232P15

€
137.00
EX VAT
€
168.51
INC VAT
Walter
Shank tool – Rigid clamping DSSNL3232P15
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

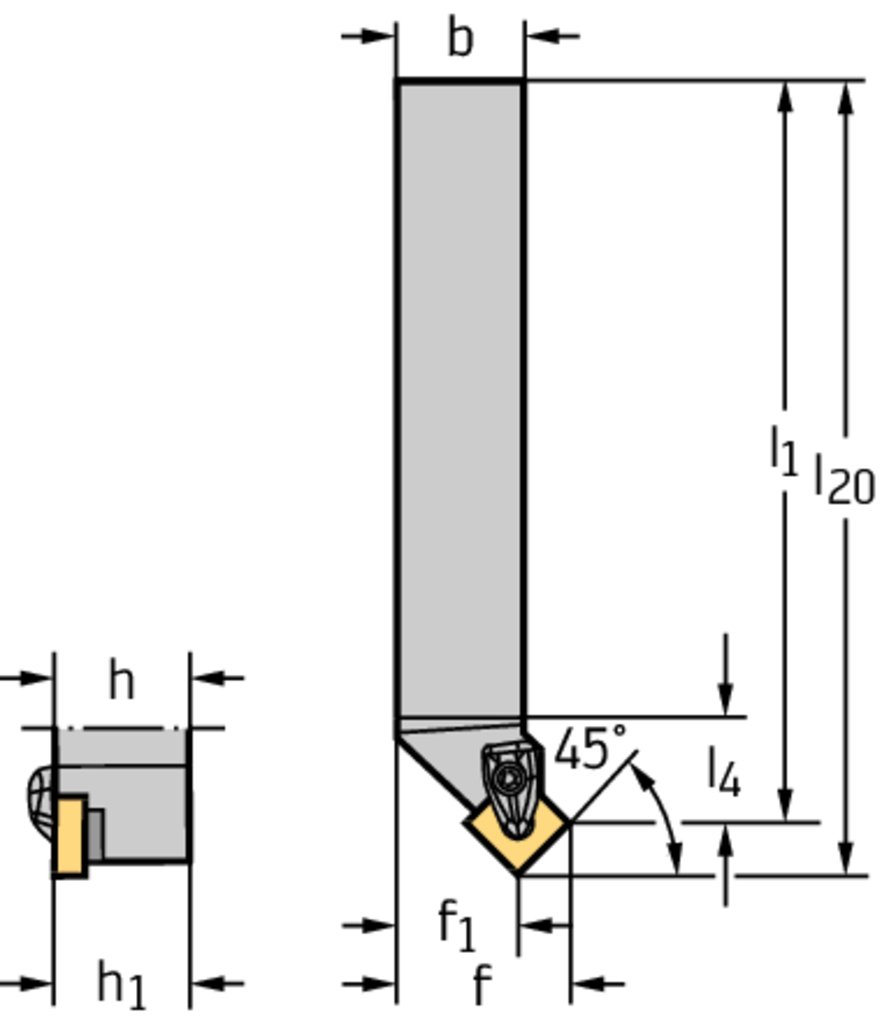

PRODUCT ATTRIBUTES
Tool designation (Designation) DSSNL3232P15
Shank height (h = h 1) 32 mm
shank width (b) 32 mm
Functional width (f) 40 mm
Functional width (f 1) 29,76 mm
Functional length (l 1) 170 mm
Maximum projection length (l 4) 32 mm
Overall length (l 20) 180,2 mm
Orthogonal rake angle (γ) -8 Deg
Inclination angle (λ s) 0 Deg
Insert Shape DS
DESCRIPTION & FEATURES
Shank tool – Rigid clamping DSSN • Walter Turn • metric • Square shank • κ=45° • Left • 32x32mm • square insert • SN .. 1506 ..
Article number (J21):
DSSNL3232P15
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
15,8 mm
Functional width (A2):
40 mm
Functional length (A3):
180,24 mm
Functional height (A4):
32 mm
A dimension on lf (A52):
10,24 mm
Overall length (B5):
180,24 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
3232
Shank height (C4):
32 mm
Shank width (C5):
32 mm
Weight of item (D7):
1,44 kg
Tool cutting edge angle (E1):
45 °
Tool cutting edge angle type code (E2):
B
Insert included angle (E3):
90 °
Rake angle orthogonal (E4):
-8 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Left
Clamping type code (F5):
D
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
SNMG 15 06 12
Data chip provision (J7):
0
Protruding length (LPR):
180,24 mm
Insert Type:
SN .. 1506 ..
