Shank tool – Screw clamping SSDCL2020K09Shank tool – Screw clamping SSDCL2020K09
Shank tool – Screw clamping SSDCL2020K09 Shank tool – Screw clamping SSDCL2020K09

Shank tool – Screw clamping SSDCL2020K09

€
105.00
EX VAT
€
129.15
INC VAT
Walter
Shank tool – Screw clamping SSDCL2020K09
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

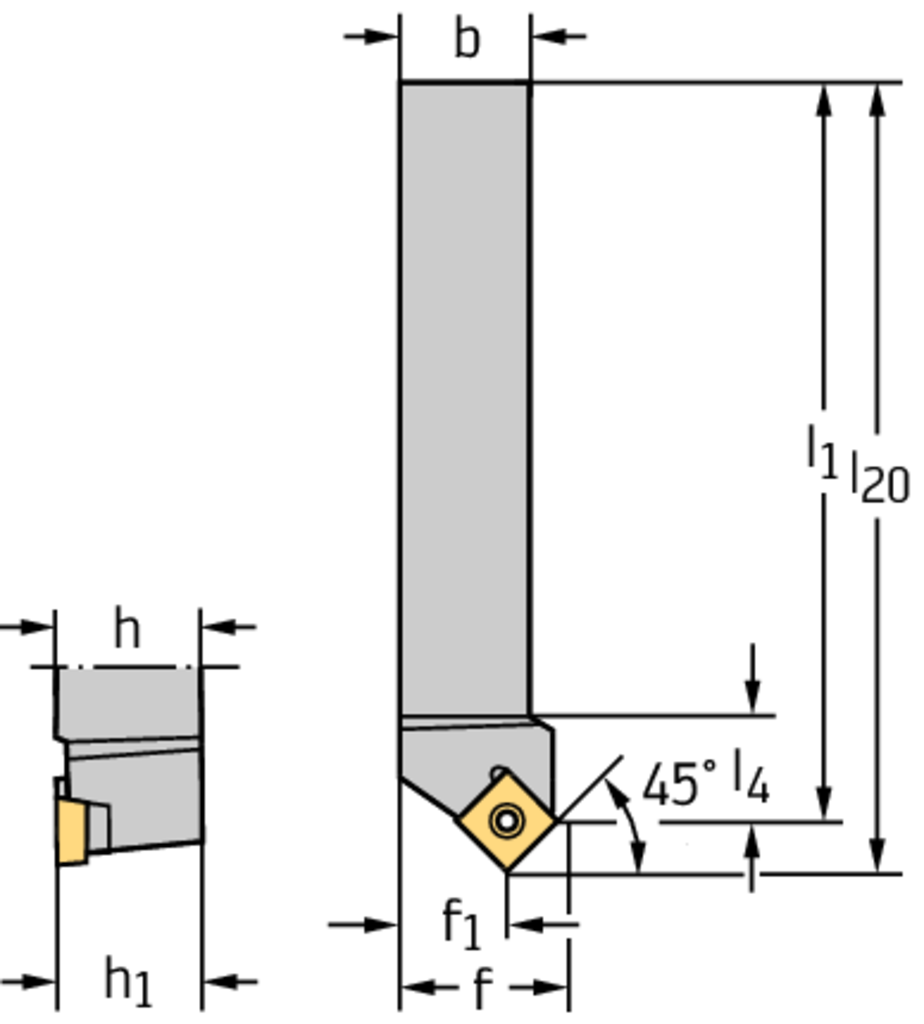

Tool designation (Designation) SSDCL2020K09
Shank height (h = h 1) 20 mm
shank width (b) 20 mm
Functional width (f) 22 mm
Functional width (f 1) 15,92 mm
Functional length (l 1) 118,9 mm
Maximum projection length (l 4) 12 mm
Overall length (l 20) 125 mm
Orthogonal rake angle (γ) 0 Deg
Inclination angle (λ s) 0 Deg
Insert Shape SS
DESCRIPTION & FEATURES
Shank tool – Screw clamping SSDC • Walter Turn • metric • Square shank • κ=45° • Left • 20x20mm • square insert • SC .. 09T3 ..
Article number (J21):
SSDCL2020K09
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
9,5 mm
Functional width (A2):
22 mm
Functional length (A3):
124,98 mm
Functional height (A4):
20 mm
A dimension on lf (A52):
6,08 mm
Overall length (B5):
124,98 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2020
Shank height (C4):
20 mm
Shank width (C5):
20 mm
Weight of item (D7):
0,403 kg
Tool cutting edge angle (E1):
45 °
Tool cutting edge angle type code (E2):
B
Insert included angle (E3):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Left
Clamping type code (F5):
S
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
SCMT 09 T3 08
Data chip provision (J7):
0
Protruding length (LPR):
124,98 mm
Insert Type:
SC .. 09T3 ..
