Shank tool – Screw clamping SDHCL1616H11Shank tool – Screw clamping SDHCL1616H11
Shank tool – Screw clamping SDHCL1616H11 Shank tool – Screw clamping SDHCL1616H11

Shank tool – Screw clamping SDHCL1616H11

€
94.10
EX VAT
€
115.74
INC VAT
Walter
Shank tool – Screw clamping SDHCL1616H11
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

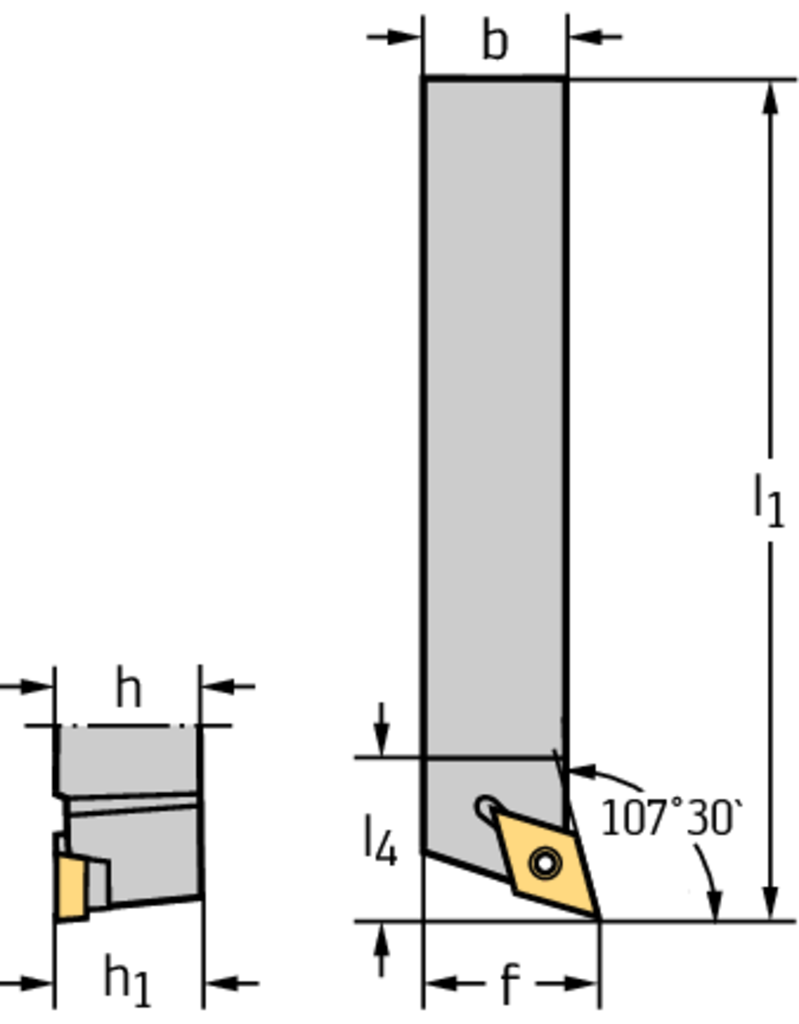

Tool designation (Designation) SDHCL1616H11
Shank height (h = h 1) 16 mm
Shank width (b) 16 mm
Functional width (f) 20 mm
Functional length (l 1) 100 mm
Maximum projection length (l 4) 17,9 mm
Orthogonal rake angle (γ) 0 Deg
Inclination angle (λ s) 0 Deg
Insert Shape SD
DESCRIPTION & FEATURES
Shank tool – Screw clamping SDHC • Walter Turn • metric • Square shank • κ=107,5° • Left • 16x16mm • rhombic insert • DC .. 11T3 ..
Article number (J21):
SDHCL1616H11
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
11,6 mm
Functional width (A2):
20 mm
Functional length (A3):
100 mm
Functional height (A4):
16 mm
Overall length (B5):
100 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
1616
Shank height (C4):
16 mm
Shank width (C5):
16 mm
Weight of item (D7):
0,219 kg
Tool cutting edge angle (E1):
17,5 °
Tool cutting edge angle type code (E2):
B
Insert included angle (E3):
55 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Left
Clamping type code (F5):
S
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Master insert identification (J42):
DCMT 11 T3 08
Data chip provision (J7):
0
Protruding length (LPR):
100 mm
Insert Type:
DC .. 11T3 ..
