Shank tool – Universal G4511-2525R-T5DX18Shank tool – Universal G4511-2525R-T5DX18
Shank tool – Universal G4511-2525R-T5DX18 Shank tool – Universal G4511-2525R-T5DX18

Shank tool – Universal G4511-2525R-T5DX18

€
154.00
EX VAT
€
189.42
INC VAT
Walter
Shank tool – Universal G4511-2525R-T5DX18
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

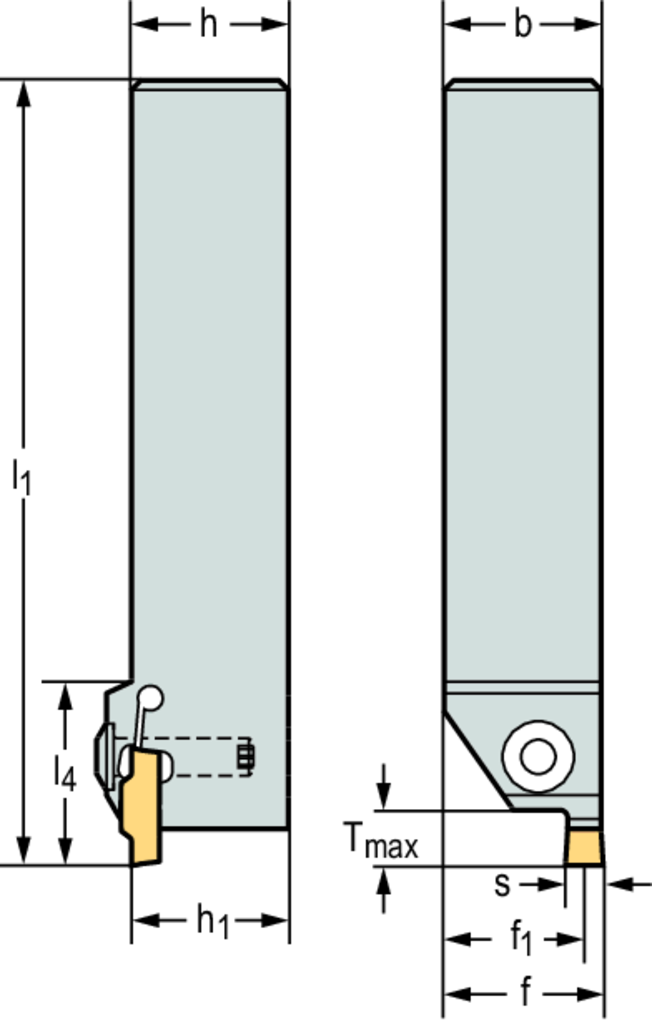

PRODUCT ATTRIBUTES
Tool designation (Designation) G4511-2525R-T5DX18
Insert width (s) 2 - 6 mm
Maximum cutting depth (T max) 5 mm
shank height (h = h 1) 25 mm
shank width (b) 25 mm
Functional width (f 1) 22,4 mm
Overall length (l 1) 125 mm
Maximum projection length (l 4) 29 mm
Insert Shape G4
DESCRIPTION & FEATURES
Shank tool – Universal G4511 • Screw clamping • Different grooving widths fit in one tool • metric • Square shank • Right • DX18 • s=2mm • Tmax=5mm
Article number (J21):
G4511-2525R-T5DX18
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
4
Cutting edge length (A1):
2 mm
Functional length (A3):
125 mm
Functional height (A4):
25 mm
Axial groove od min (A71):
104 mm
Cutting depth maximum (A8):
5 mm
Overall length (B5):
125 mm
Connection code type machine side (C11):
VKT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
2525
Shank height (C4):
25 mm
Shank width (C5):
25 mm
Weight of item (D7):
0,553 kg
Tool cutting edge angle (E1):
90 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Right
Tool holder shape code (F2):
G
Clamping type code (F5):
C
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Data chip provision (J7):
0
Protruding length (LPR):
125 mm
