Shoulder milling cutters M5137-063-B22-07-05

Shoulder milling cutters M5137-063-B22-07-05

€

611.00

EX VAT

€

751.53

INC VAT

Walter

Shoulder milling cutters M5137-063-B22-07-05

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) M5137-063-B22-07-05

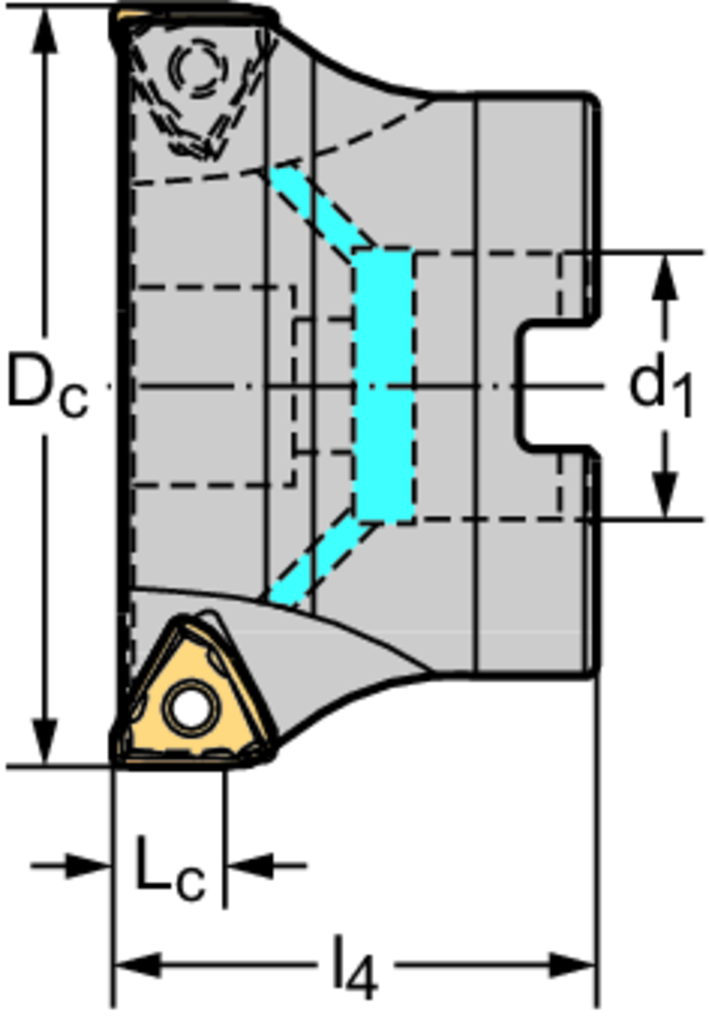

Cutting edge diameter (D c) 63 mm

Connection diameter (d 1) 22 mm

Maximum projection length (l 4) 40 mm

Cutting edge length (L c) 5 mm

Number of teeth (Z) 7

weight of item 0,48 kg

Number of indexable inserts (No. of indexable inserts) 7

Maximum admissable speed (n max [rpm]) 15400

Maximum ramping angle (E) 0,9 Deg

Insert Shape M5

DESCRIPTION & FEATURES

Shoulder milling cutters M5137 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • TN .. 11T3 .. • Dc=63mm • Z=7

Article number (J21):

M5137-063-B22-07-05

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

63 mm

Cutting diameter maximum (A2):

63 mm

Body diameter (A3):

62 mm

Hub diameter (A4):

48 mm

Counterbore diameter connection bore (A5):

16,35 mm

Cutting depth maximum (B2):

5 mm

Overall length (B5):

40 mm

Counterbore depth connection bore (B6):

14,3 mm

Connection code type machine side (C11):

FDA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0220

Connection diameter machine side (C3):

22 mm

Adjustment property (D4):

Rotational speed maximum (D6):

15400 1/min

Weight of item (D7):

0,479 kg

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0,9 °

Plunge depth maximum (E5):

0,5 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO6462

Standard letter to the standard number (J11):

Master insert identification, position A (J42):

TNMU11T304R-G57

Data chip provision (J7):

Shoulder milling cutters M5137-063-B22-07-05
