Shoulder milling cutters F5041.UZ26.026.Z03.08Shoulder milling cutters F5041.UZ26.026.Z03.08
Shoulder milling cutters F5041.UZ26.026.Z03.08 Shoulder milling cutters F5041.UZ26.026.Z03.08

Shoulder milling cutters F5041.UZ26.026.Z03.08

€
368.00
EX VAT
€
452.64
INC VAT
Walter
Shoulder milling cutters F5041.UZ26.026.Z03.08
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

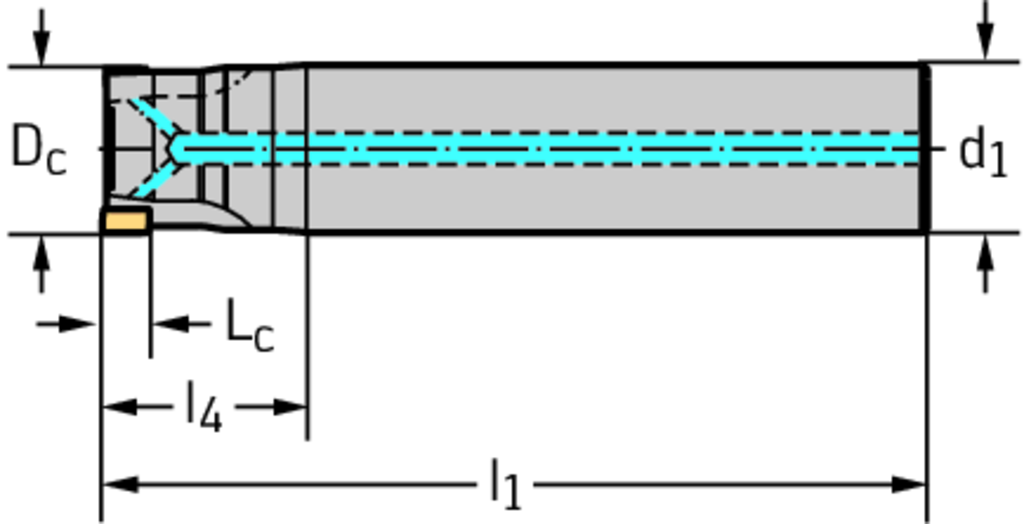

Tool designation (Designation) F5041.UZ26.026.Z03.08
Cutting edge diameter (D c) 1 inch
connection diameter (d 1) 1 inch
Maximum projection length (l 4) 1,97 inch
overall length (l 1) 8 inch
Cutting edge length (L c) 0,315 inch
Number of teeth (Z) 3
weight of item 0,7 lbs
Number of indexable inserts (No. of indexable inserts) 3
Insert Shape F5
DESCRIPTION & FEATURES
Shoulder milling cutters F5041 • Parallel shank • κ=90° • inch • LN .. 0904 .. • Dc=25mm • Z=3
Article number (J21):
F5041.UZ26.026.Z03.08
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
1
Cutting diameter (A1):
25,4 mm
Body diameter (A3):
22,9 mm
Depth of cut maximum (B2):
8 mm
Protruding length (B3):
50,04 mm
Usable length (B4):
35 mm
Overall length (B5):
203,2 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
3
Connection code style machine side (C15):
5
Connection size code machine side (C2):
1000
Connection diameter machine side (C3):
25,4 mm
Rotational speed maximum (D6):
9000 1/min
Weight of item (D7):
0,744 kg
Adjustment property (D9):
0
Tool cutting edge angle (E1):
90 °
Rake angle radial (E2):
0 °
Rake angle axial (E3):
0 °
Ramping angle maximum (E4):
0 °
Plunge depth maximum (E5):
0,8 mm
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
3
Face effective cutting edge count (F22):
3
Face mounted insert count (G13):
3
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
