Shoulder milling cutters F5141.T45.050.Z06.12

Shoulder milling cutters F5141.T45.050.Z06.12

€

564.00

EX VAT

€

693.72

INC VAT

Walter

Shoulder milling cutters F5141.T45.050.Z06.12

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

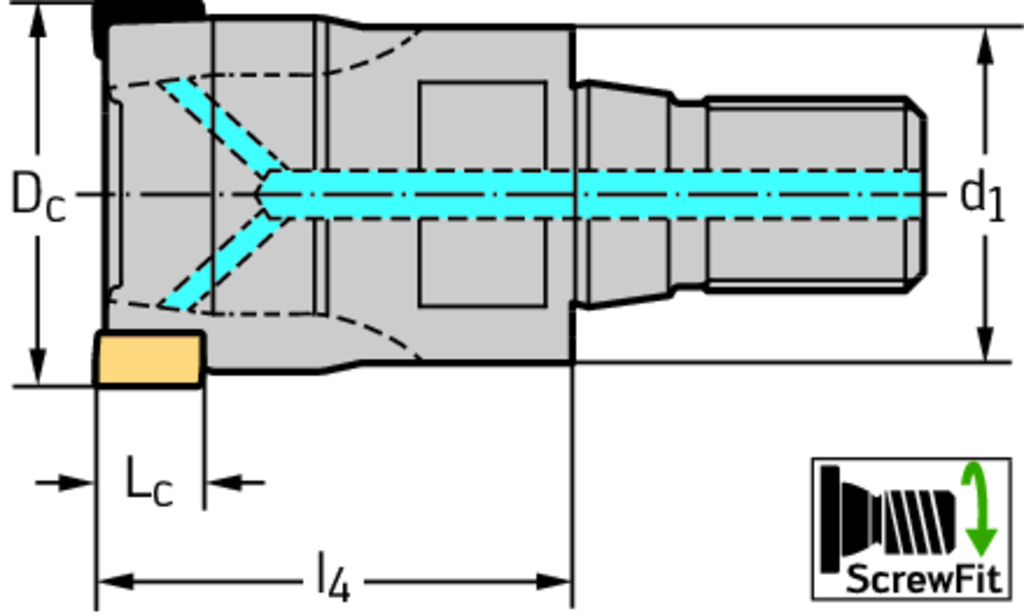

Tool designation (Designation) F5141.T45.050.Z06.12

Cutting edge diameter (D c) 50 mm

Connection diameter (d 1) T45 mm

Maximum projection length (l 4) 40 mm

Cutting edge length (L c) 12 mm

Number of teeth (Z) 6

weight of item 0,51 kg

Number of indexable inserts (No. of indexable inserts) 6

Maximum admissable speed (n max [rpm]) 20200

Maximum ramping angle (E) 0 Deg

Insert Shape F5

DESCRIPTION & FEATURES

Shoulder milling cutters F5141 • ScrewFit • κ=90° • metric • LN .. 1306 .. • Dc=50mm • Z=6

Article number (J21):

F5141.T45.050.Z06.12

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

50 mm

Body diameter (A3):

47,2 mm

Depth of cut maximum (B2):

12 mm

Protruding length (B3):

40 mm

Usable length (B4):

40 mm

Overall length (B5):

40 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0450

Connection diameter machine side (C3):

45 mm

Rotational speed maximum (D6):

20200 1/min

Weight of item (D7):

0,511 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

0 °

Plunge depth maximum (E5):

1,1 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
