Shoulder milling cutters F4041.UT36.038.Z03.13Shoulder milling cutters F4041.UT36.038.Z03.13
Shoulder milling cutters F4041.UT36.038.Z03.13 Shoulder milling cutters F4041.UT36.038.Z03.13

Shoulder milling cutters F4041.UT36.038.Z03.13

€
389.00
EX VAT
€
478.47
INC VAT
Walter
Shoulder milling cutters F4041.UT36.038.Z03.13
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

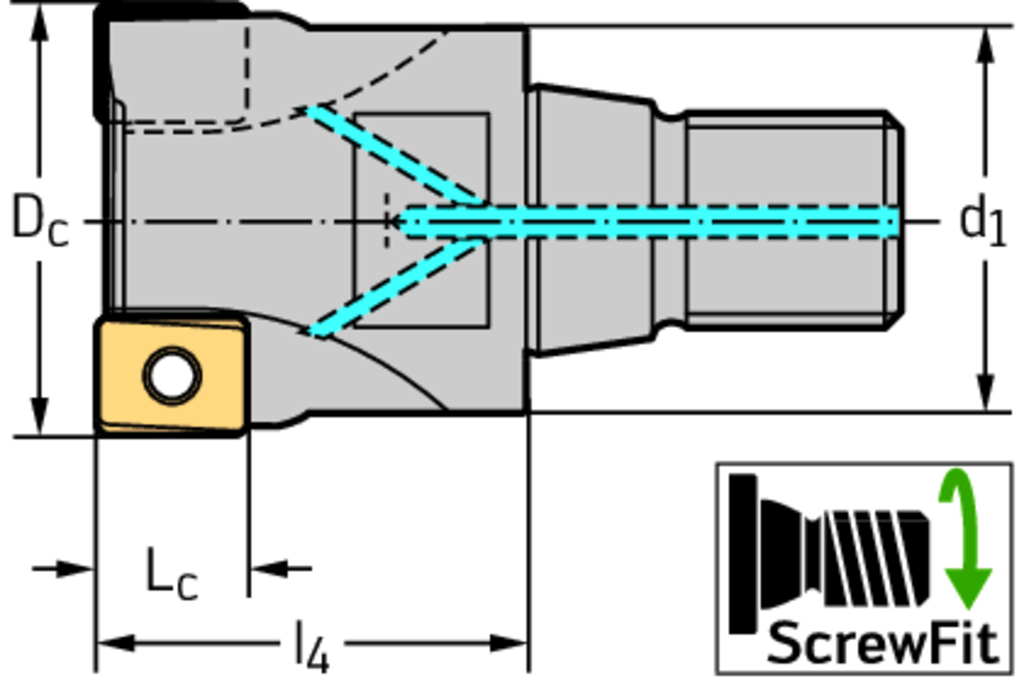

Tool designation (Designation) F4041.UT36.038.Z03.13
Cutting edge diameter (D c) 1,5 inch
Connection diameter (d 1) T36 inch
Maximum projection length (l 4) 1,575 inch
cutting edge length (L c) 0,512 inch
Number of teeth (Z) 3
weight of item 0,3 lbs
Number of indexable inserts (No. of indexable inserts) 3
Insert Shape F4
DESCRIPTION & FEATURES
Shoulder milling cutters F4041 • ScrewFit • κ=90° • inch • LN .. 1307 .. • Dc=38mm • Z=3
Article number (J21):
F4041.UT36.038.Z03.13
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
1
Cutting diameter (A1):
38,1 mm
Body diameter (A3):
35,77 mm
Neck diameter (A5):
36 mm
Depth of cut maximum (B2):
13 mm
Protruding length (B3):
40 mm
Usable length (B4):
40 mm
Overall length (B5):
40 mm
Connection code type machine side (C11):
SAW
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0360
Connection diameter machine side (C3):
36 mm
Rotational speed maximum (D6):
15400 1/min
Weight of item (D7):
0,318 kg
Adjustment property (D9):
0
Tool cutting edge angle (E1):
90 °
Rake angle radial (E2):
0 °
Rake angle axial (E3):
0 °
Ramping angle maximum (E4):
0 °
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
3
Face effective cutting edge count (F22):
3
Face mounted insert count (G13):
3
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
