Shoulder milling cutters F4042R.UT18.019.Z03.10

Shoulder milling cutters F4042R.UT18.019.Z03.10

€

331.00

EX VAT

€

407.13

INC VAT

Walter

Shoulder milling cutters F4042R.UT18.019.Z03.10

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

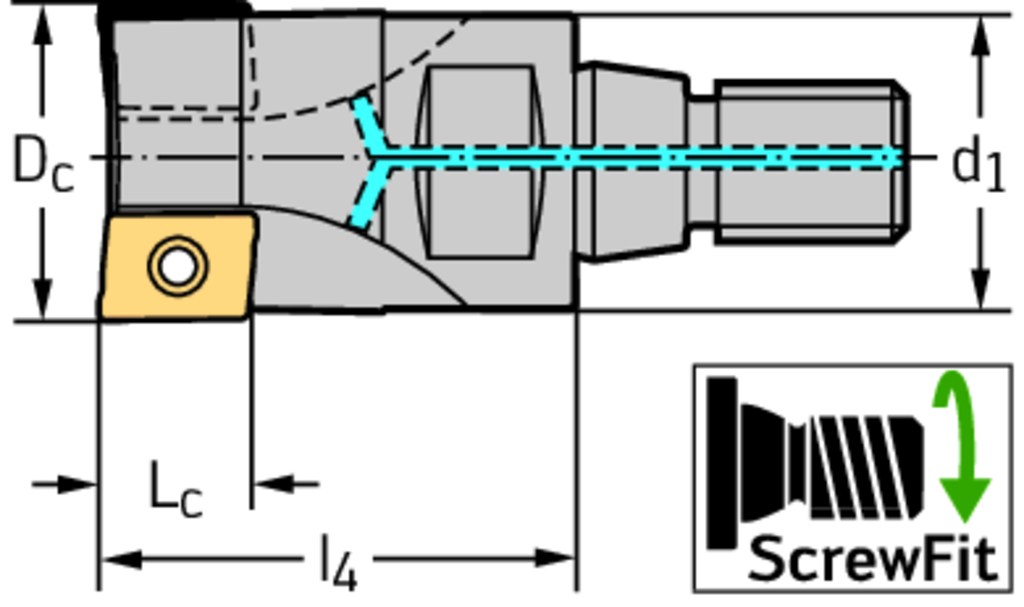

Tool designation (Designation) F4042R.UT18.019.Z03.1

Cutting edge diameter (D c) 0,75 inch

Connection diameter (d 1) T18 inch

Maximum projection length (l 4) 1,181 inch

cutting edge length (L c) 0,394 inch

Number of teeth (Z) 3

weight of item 0,1 lbs

Number of indexable inserts (No. of indexable inserts) 3

Insert Shape F4

DESCRIPTION & FEATURES

Shoulder milling cutters F4042R • ScrewFit • κ=90° • inch • AD .. 10T3 .. • Dc=19mm • Z=3

Article number (J21):

F4042R.UT18.019.Z03.10

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

19,05 mm

Body diameter (A3):

18,39 mm

Depth of cut maximum (B2):

10 mm

Protruding length (B3):

30 mm

Usable length (B4):

30 mm

Overall length (B5):

51 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0180

Connection diameter machine side (C3):

18,5 mm

Rotational speed maximum (D6):

36300 1/min

Weight of item (D7):

0,06 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

3,02 °

Plunge depth maximum (E5):

0,6 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
