Slitting – cutting inserts SX-2E200N02-SF5 WSM33SSlitting – cutting inserts SX-2E200N02-SF5 WSM33S
Slitting – cutting inserts SX-2E200N02-SF5 WSM33S Slitting – cutting inserts SX-2E200N02-SF5 WSM33S

Slitting – cutting inserts SX-2E200N02-SF5 WSM33S

€
11.40
EX VAT
€
14.02
INC VAT
Walter
Slitting – cutting inserts SX-2E200N02-SF5 WSM33S
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES
Tool designation (Designation) SX-2E200N02-SF5 WSM33S

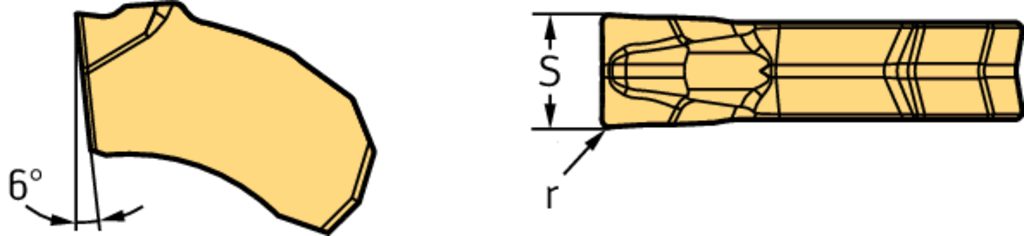

Insert width (s) 2 mm
Corner radius (r) 0,2 mm
Feed per revolution (f) 0,06 - 0,15 mm
Tolerance cutting width (S Tol) ±0,05 mm
Length tolerance (l Tol) ±0,1 mm
Insert Shape SX
DESCRIPTION & FEATURES
Slitting – cutting inserts SX ...-SF5 • neutral • WSM33S • Tigertec Silver • s=2mm • r=0,2mm
Article number (J21):
SX-2E200N02-SF5 WSM33S
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-77
Tool style code (BLD):
1
Profile form (A1):
1
Cutting width (A2):
2 mm
Corner radius right hand (C5):
0,2 mm
Corner radius left hand (C6):
0,2 mm
Weight of item (D75):
0,001 kg
Clearance angle major (E1):
23 °
Chip breaker face count (E6):
1
Insert hand (E7):
N
Chip breaker manufacturers designation (E9):
SF5
Flute count (F2):
1
Insert length (G1):
12,3 mm
Insert mounting style code (G5):
7
Grade manufacturer's designation (H3):
WSM33S
Coating (H5):
TiAlN+Al2O3+(Al)
Tipped cutting edge code (H6):
S
