Slotting cutters for ‌slot milling F4053.B27.080.Z04.04Slotting cutters for ‌slot milling F4053.B27.080.Z04.04
Slotting cutters for ‌slot milling F4053.B27.080.Z04.04 Slotting cutters for ‌slot milling F4053.B27.080.Z04.04

Slotting cutters for ‌slot milling F4053.B27.080.Z04.04

€
879.00
EX VAT
€
1,081.17
INC VAT
Walter
Slotting cutters for ‌slot milling F4053.B27.080.Z04.04
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

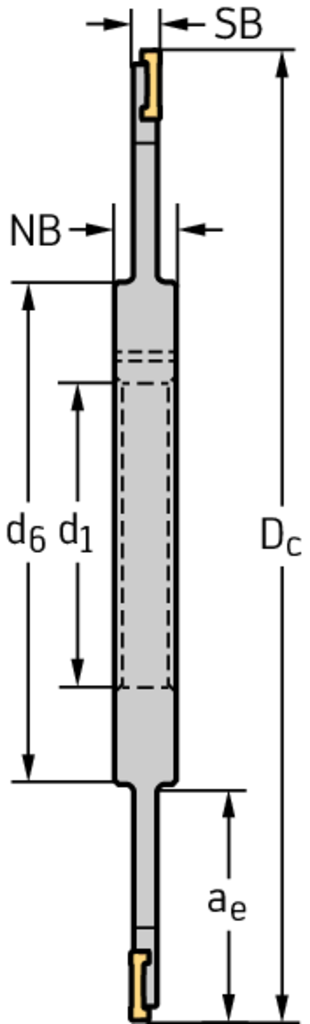

Tool designation (Designation) F4053.B27.080.Z04.04
Cutting edge diameter (D c) 80 mm
connection diameter (d 1) 27 mm
Hub diameter (d 6) 42 mm
Hub thickness (NB) 8 mm
Max. depth of cut (SB) 4 mm
Maximum depth of cut (a e) 18 mm
Number of teeth (Z) 4
weight of item 0,17 kg
Number of indexable inserts (No. of indexable inserts) 8
Insert Shape F4
DESCRIPTION & FEATURES
Slotting cutters for ‌slot milling F4053 • Parallel bore DIN 138 longitudinal keyway • metric • Dc=80mm • SB=4mm
Article number (J21):
F4053.B27.080.Z04.04
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-88
Tool style code (BLD):
5
Cutting diameter (A1):
80 mm
Hub diameter (A4):
42 mm
Cutting width minimum (B11):
4 mm
Cutting width maximum (B12):
4 mm
Cutting depth maximum (B2):
18 mm
Overall length (B5):
8 mm
Connection code type machine side (C11):
FDA
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
0
Connection size code machine side (C2):
0270
Connection diameter machine side (C3):
27 mm
Adjustment property (D4):
0
Rotational speed maximum (D6):
21200 1/min
Weight of item (D7):
0,17 kg
Cutting direction (F1):
Neutral
Peripheral effective cutting edge count (F21):
4
Face effective cutting edge count (F22):
4
Face mounted insert count (G13):
8
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Body material code (H4):
S
Data chip provision (J7):
0
